Wallarm Connector for Traefik¶

To secure APIs managed by Traefik, Wallarm provides a connector implemented as an in-process Traefik middleware plugin. The plugin routes ingress traffic through a Wallarm Native Node for real-time API attack detection, without sidecars, DaemonSets, or traffic mirroring infrastructure. One shared Node deployment serves every Traefik replica in the cluster.

The connector supports both synchronous (in-line) and asynchronous (out-of-band) traffic analysis, selected with the mode value:

block (default) — the Node verdict is enforced in-line. The 403 response is returned to the client before the request reaches your service.
oob — a copy of each request is sent to the Node asynchronously. Traffic latency is unaffected, and attacks appear in Wallarm Console.

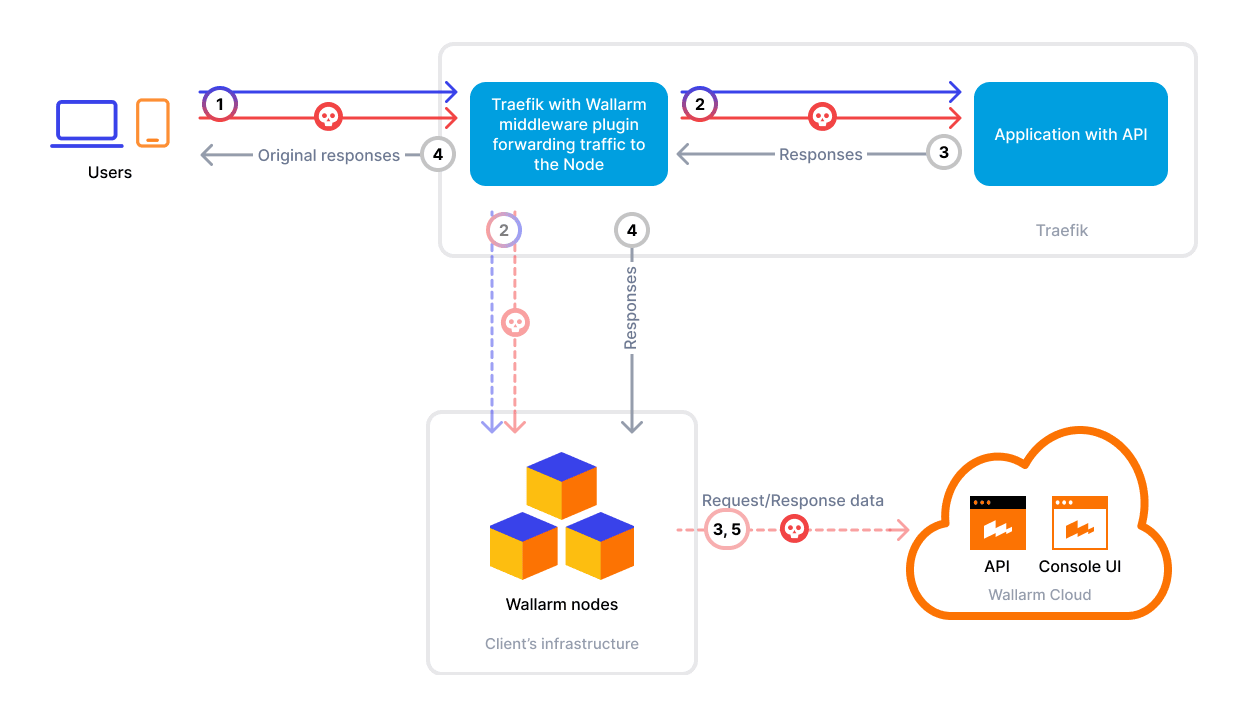

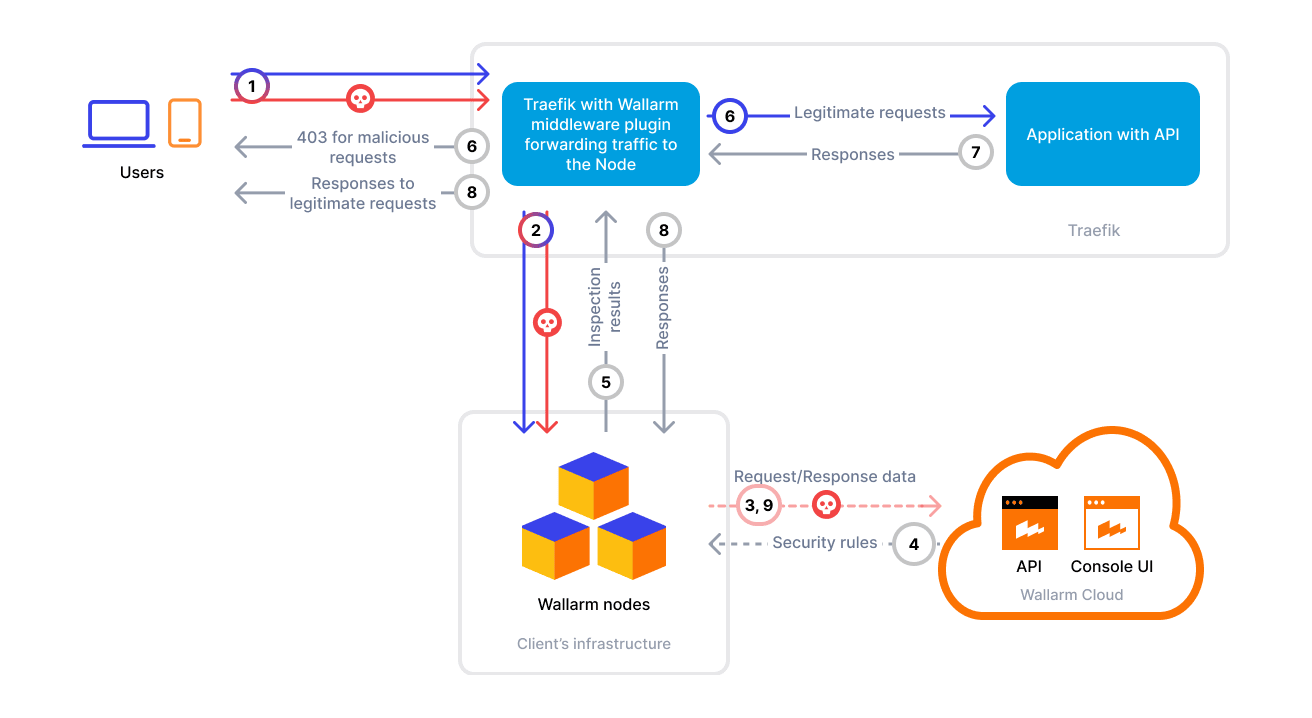

Synchronous traffic flowAsynchronous traffic flow

Use cases¶

This connector is the optimal choice when you need protection for APIs exposed through Traefik in a Kubernetes cluster, and you want one shared Wallarm Node to serve every Traefik replica.

Limitations¶

The connector requires a self-hosted Wallarm Native Node. It is not available with Security Edge.
Only the first 1 MiB of a request body is sent to the Node for analysis. The cap is configurable with maxBodyBytes.
The plugin fails open by default. If the Node does not answer within timeoutMs, the request proceeds to the upstream service without a Wallarm verdict. Set failOpen to false to fail closed instead.
Traefik strips the X-Real-IP and X-Forwarded-* headers from peers it does not trust, and it does so before middleware runs. The connector cannot restore them, so the trusted peers have to be configured on the Traefik side. See Configuring the real client IP.

Requirements¶

To proceed with the deployment, ensure that the following requirements are met:

Traefik 2.x or 3.x deployed in a Kubernetes cluster and managing your API traffic, installed with the official Traefik Helm chart
Helm v3 package manager
Wallarm Native Node 0.25.8 or later. Earlier Node versions do not accept the traefik connector type
Access to https://charts.wallarm.com to add the Wallarm Helm chart
Access to the Wallarm repositories on Docker Hub https://hub.docker.com/r/wallarm
Access to https://us1.api.wallarm.com (US Wallarm Cloud) or https://api.wallarm.com (EU Wallarm Cloud)
Administrator access to Wallarm Console for US Cloud or EU Cloud

Deployment¶

To secure APIs managed by Traefik, follow these steps:

Deploy the Wallarm Native Node service in your Kubernetes cluster.
Obtain the Wallarm Traefik connector, deploy it, load the plugin into Traefik, and attach the middleware to the Ingress resources you want to analyze.

1. Deploy a Wallarm Native Node¶

Deploy the Wallarm Native Node in connector-server mode as a separate service in your Kubernetes cluster:

helm repo add wallarm https://charts.wallarm.com
helm install native wallarm/wallarm-node-native -n wallarm-node --create-namespace \
  --set config.connector.mode=connector-server --set config.api.token=<TOKEN>

<TOKEN> is your Wallarm API token.

The connector-server endpoint defaults to http://native-processing.wallarm-node.svc.cluster.local:5000.

For the full set of deployment and configuration options, see the Native Node Helm chart instructions.

2. Obtain the Wallarm Traefik connector¶

Contact support@wallarm.com to obtain the Wallarm Traefik connector code bundle.

3. Deploy the connector¶

Install the connector chart, which creates the plugin ConfigMap and the Traefik Middleware resource:

helm install wallarm-traefik-connector ./charts/wallarm-traefik-connector \
  -n traefik \
  --set nodeURL=http://native-processing.wallarm-node.svc.cluster.local:5000 \
  --set mode=block

Set mode to block to enforce Node verdicts in-line, or to oob for out-of-band analysis.

4. Load the plugin into Traefik¶

Apply the values file supplied with the connector bundle to register the plugin with Traefik. It mounts the plugin ConfigMap into the Traefik pod:

helm upgrade traefik traefik/traefik -n traefik --reuse-values \
  -f examples/traefik-values.yaml

5. Protect an Ingress¶

Attach the Wallarm middleware to the Ingress resources you want to analyze:

kubectl annotate ingress <name> \
  traefik.ingress.kubernetes.io/router.middlewares=traefik-wallarm@kubernetescrd

<name> is the name of your Ingress resource. For an IngressRoute, reference the middleware in the route definition instead.

Configuring the real client IP¶

Traefik strips the X-Real-IP and X-Forwarded-* headers from peers it does not trust, and it does so before middleware runs. If a load balancer or CDN fronts Traefik, list the trusted peers in the Traefik Helm values. Otherwise, Wallarm Console attributes every attack to the load balancer instead of the real client:

ports:
  web:
    forwardedHeaders:
      trustedIPs:
        - 10.0.0.0/8        # your load balancer or CNI range

Headers cannot be recovered later

The connector cannot restore these headers on its own, because Traefik removes them before the plugin receives the request.

Configuration options¶

In the connector chart values, you can customize the following optional parameters:

Parameter	Description	Default
`nodeURL`	Address of the Wallarm Native Node `connector-server` endpoint.	`http://native-processing.wallarm-node.svc.cluster.local:5000`
`mode`	Traffic analysis mode: `block` to enforce the Node verdict in-line, or `oob` to send a copy of each request asynchronously.	`block`
`timeoutMs`	The maximum time (in milliseconds) the plugin waits for a response from the Wallarm Node.	`1000`
`failOpen`	Whether to let the request through when the Node does not answer within `timeoutMs`. When `false`, the request is rejected instead.	`true`
`maxBodyBytes`	The maximum size (in bytes) of the request body sent to the Node for analysis.	`1048576` (1 MiB)
`inspectResponse`	Sends the upstream response status and headers to the Node on a second, correlated leg. Required for API Discovery and API Sessions: API Discovery ignores requests that have no response.	`true`
`inspectResponseBody`	Also sends the response body, capped by `maxBodyBytes`. Requires `inspectResponse`.	`true`
`middleware.name`	Name of the Traefik `Middleware` resource created by the chart.	`wallarm`
`plugin.configMapName`	Name of the ConfigMap holding the plugin source, mounted into the Traefik pod.	`wallarm-traefik-plugin`

Testing¶

To test the functionality of the deployed connector, follow these steps:

Verify that the Wallarm pods are up and running:
```
kubectl -n wallarm-node get pods
```
wallarm-node is the namespace where the Wallarm node service is deployed.

Each pod status should be STATUS: Running or READY: N/N.

Send the request with the test Path Traversal attack to your Traefik ingress:

curl -H "Host: <YOUR_APP_DOMAIN>" "http://$INGRESS_IP/etc/passwd"

The result depends on the connector mode and on the Wallarm node filtration mode:

Connector mode	Node filtration mode	Result
`block`	blocking	`403` returned by the Node, the request never reaches the application
`block`	monitoring	`200` from the application, the attack is registered in Wallarm Console
`oob`	any	`200` from the application, the attack is registered in Wallarm Console asynchronously

Open Wallarm Console → Attacks section in the US Cloud or EU Cloud and make sure the attack is displayed in the list.

Upgrading the Wallarm Traefik connector¶

To upgrade the deployed connector:

Contact support@wallarm.com to obtain the updated Wallarm Traefik connector code bundle.

Upgrade the connector chart, which refreshes the plugin ConfigMap:

helm upgrade wallarm-traefik-connector ./charts/wallarm-traefik-connector -n traefik --reuse-values

Restart Traefik so that it reloads the plugin source:

kubectl rollout restart deployment/traefik -n traefik

Connector upgrades may require a Wallarm node upgrade, especially for major version updates. See the Wallarm Native Node changelog for release updates and upgrade instructions. Regular node updates are recommended to avoid deprecation and simplify future upgrades.
