Infrastructure Discovery Setup¶

This article describes how to connect your cloud accounts to Wallarm's Infrastructure Discovery and configure scanning.

Requirements¶

• Active Infrastructure Discovery subscription

• An AWS account with permissions to create a CloudFormation stack (for the IAM Role method) or an IAM access key

• Network access from your AWS account to the Wallarm Cloud (no inbound firewall rules required — all communication is outbound from Wallarm)

Connecting an AWS account¶

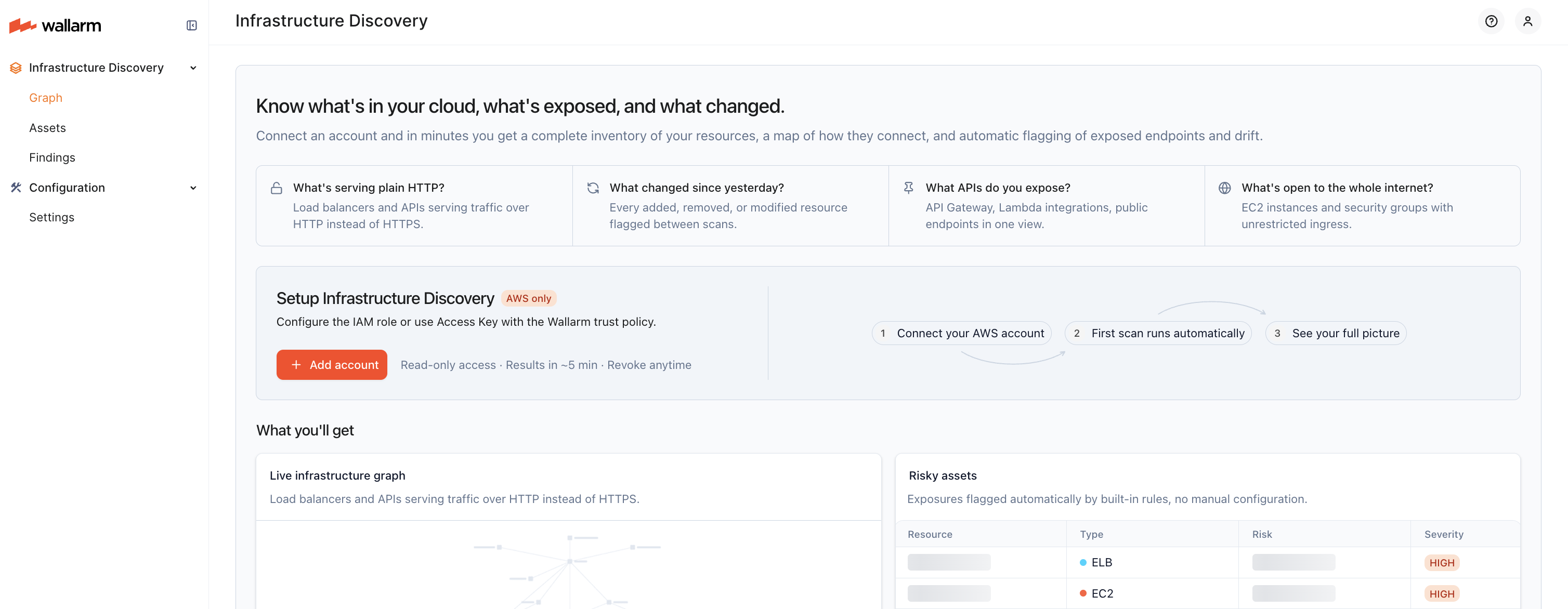

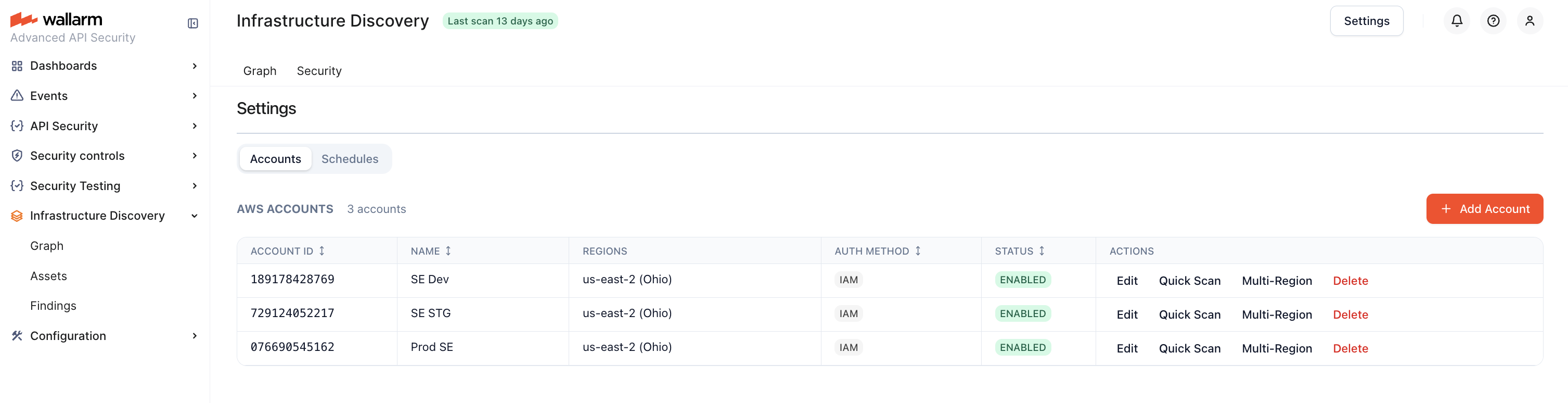

To connect an AWS account, open Settings in the Infrastructure Discovery section of Wallarm Console and click Add Account on the Accounts tab.

Authentication type¶

The Authentication Type dropdown provides two options:

Both methods use the same read-only permissions and produce the same inventory.

Required AWS permissions¶

Infrastructure Discovery requires read-only permissions aligned with the AWS services it inspects. When you use the IAM Role method, the CloudFormation template grants these permissions for you — the policy below is shown for review. When you connect with an access key, attach a policy with the same permissions to the IAM user. The following IAM policy covers all supported resource types:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "WallarmInfraDiscoveryReadOnly",
            "Effect": "Allow",
            "Action": [
                "ec2:Describe*",
                "elasticloadbalancing:Describe*",
                "eks:List*",
                "eks:Describe*",
                "lambda:List*",
                "apigateway:GET",
                "iam:List*",
                "iam:Get*",
                "bedrock:List*",
                "bedrock:Get*",
                "securityhub:GetFindings",
                "securityhub:ListFindingAggregators",
                "sts:GetCallerIdentity"
            ],
            "Resource": "*"
        }
    ]
}

The policy grants read-only access only. The iam:Get* and iam:List* actions allow Infrastructure Discovery to inventory IAM roles, users, groups, and policies; they do not allow it to create, modify, or delete any IAM entity. The bedrock:* actions cover Amazon Bedrock foundation models, custom models, agents, and knowledge bases. The securityhub:* actions let Infrastructure Discovery import existing AWS Security Hub findings and correlate them with discovered resources.

For multi-account setup via AWS Organizations, add the following permission to the management account role:

{
    "Sid": "WallarmInfraDiscoveryOrganizations",
    "Effect": "Allow",
    "Action": [
        "organizations:ListAccounts"
    ],
    "Resource": "*"
}

Setup with IAM Role¶

The Add AWS account wizard guides you through three steps:

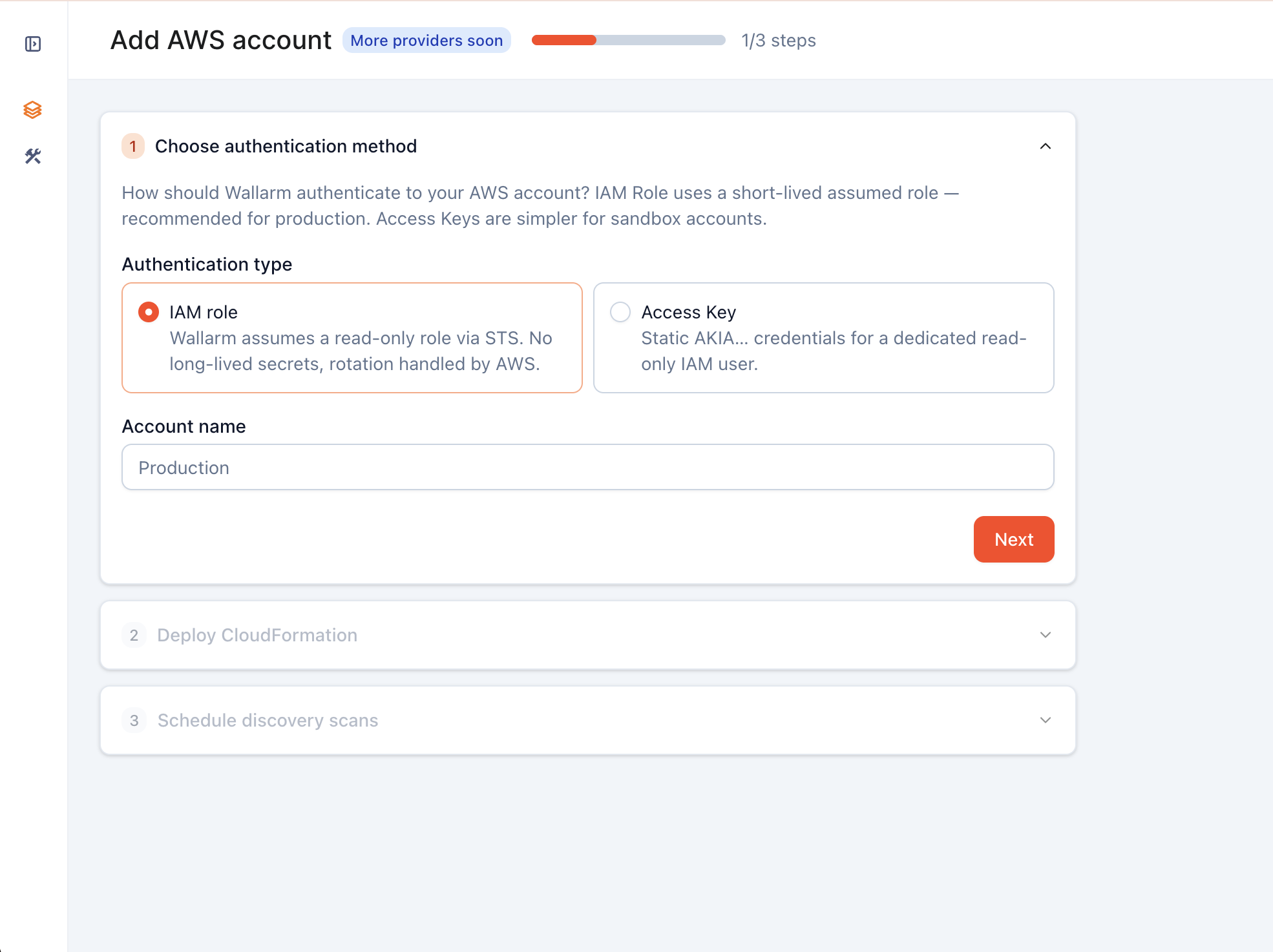

1. Choose authentication method — select IAM role, enter an Account name, and click Next.

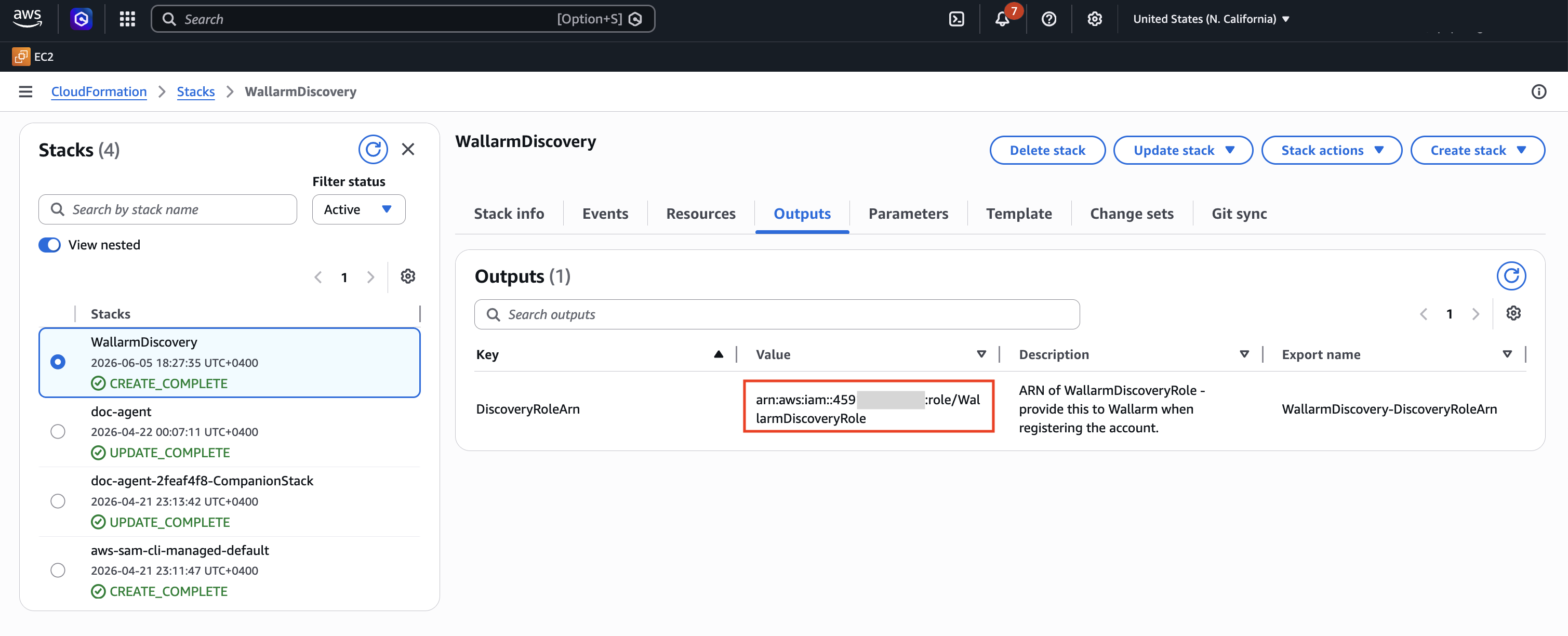

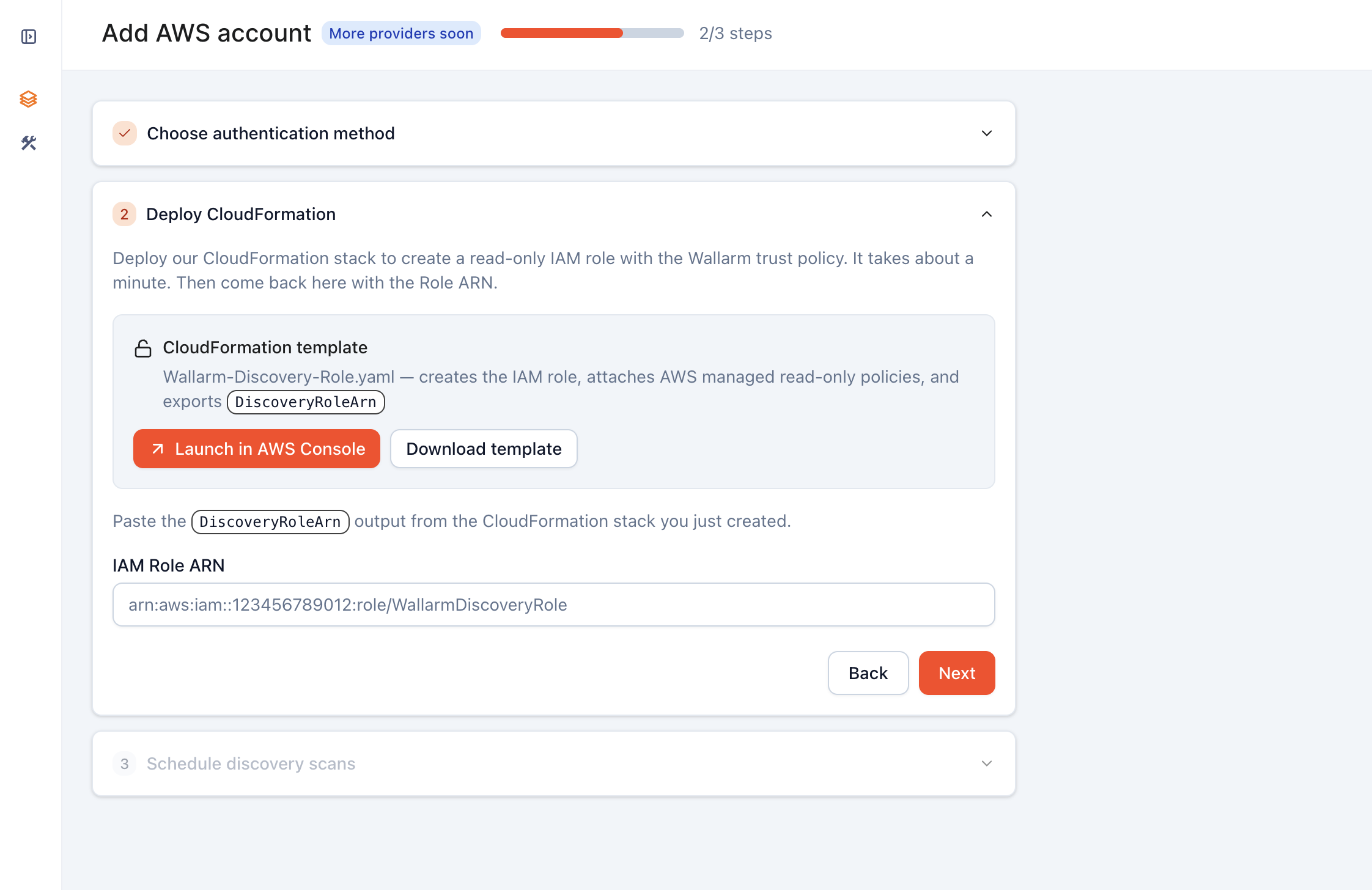

2. Deploy CloudFormation — click Launch in AWS Console to open AWS CloudFormation with the Wallarm-Discovery-Role.yaml template pre-filled for your Wallarm tenant (or click Download template to apply it manually). Create the stack — it takes about a minute — then copy the DiscoveryRoleArn value from the stack outputs, paste it into the IAM Role ARN field, and click Next.

3. Schedule discovery scans — keep Enable scheduled discovery scan on, set the Scan Interval (Minutes), and click Add account.

The template creates the read-only role and a trust policy scoped to your Wallarm tenant, so you do not configure trust settings or an external ID manually.

Setup with Access Key¶

The wizard guides you through three steps:

1. Choose authentication method — select Access Key, enter an Account name, and click Next.

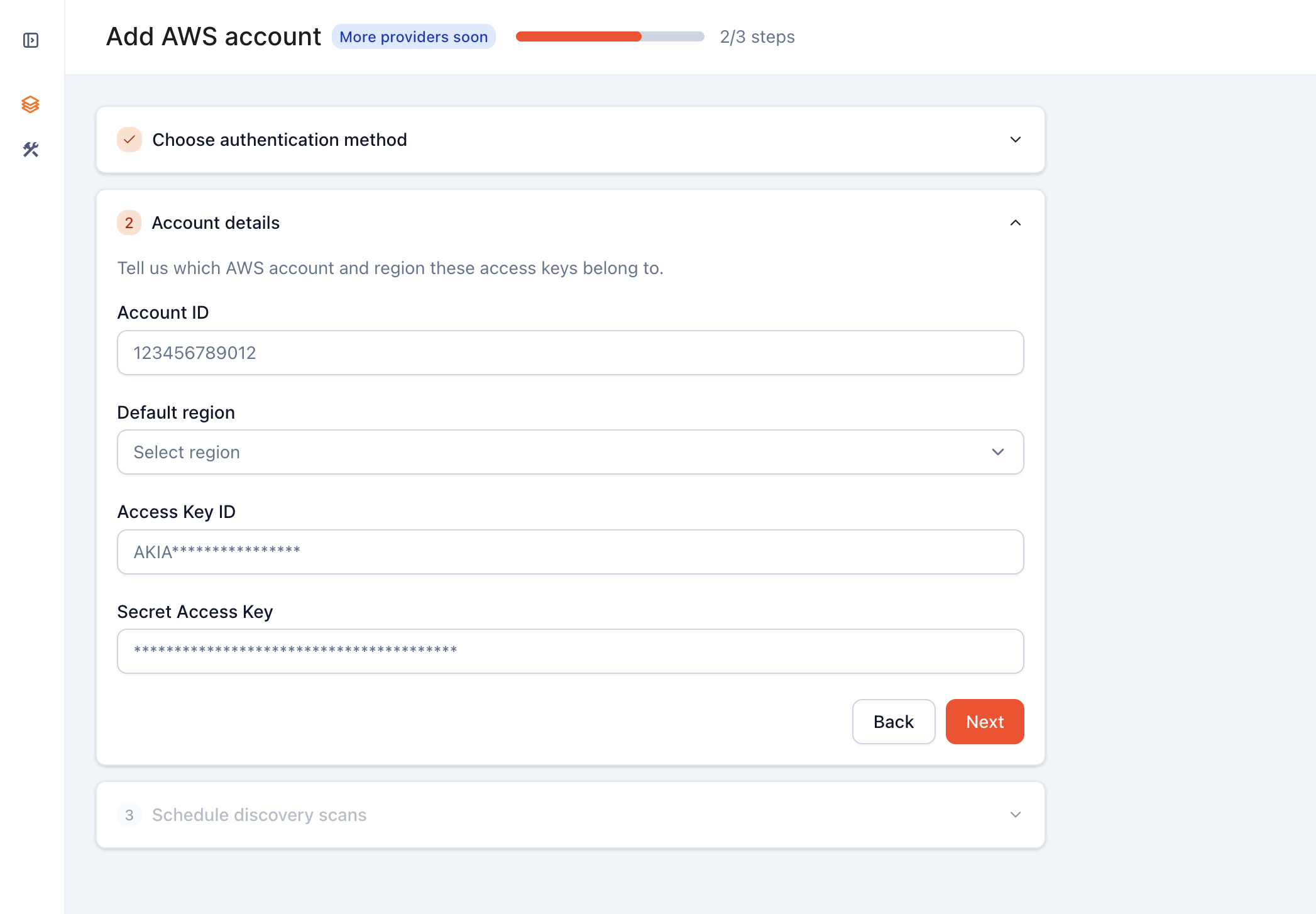

2. Account details — enter the Account ID, the Default region, and the Access Key ID and Secret Access Key of a read-only IAM user, then click Next. Attach a policy with the required permissions to that user.

3. Schedule discovery scans — keep Enable scheduled discovery scan on, set the Scan Interval (Minutes), and click Add account.

Multi-account setup¶

Infrastructure Discovery is designed to scan across many AWS accounts from a single Wallarm tenant. Two approaches are available:

Connect each account individually — repeat the connection steps for every account. Simple and straightforward for a small number of accounts.

Delegate through AWS Organizations — if your accounts are managed by AWS Organizations, you can create a single IAM role in the management account with the organizations:ListAccounts permission. Infrastructure Discovery enumerates member accounts and scans them using the delegated role. This approach scales to hundreds of accounts without manual per-account setup.

Scan schedule¶

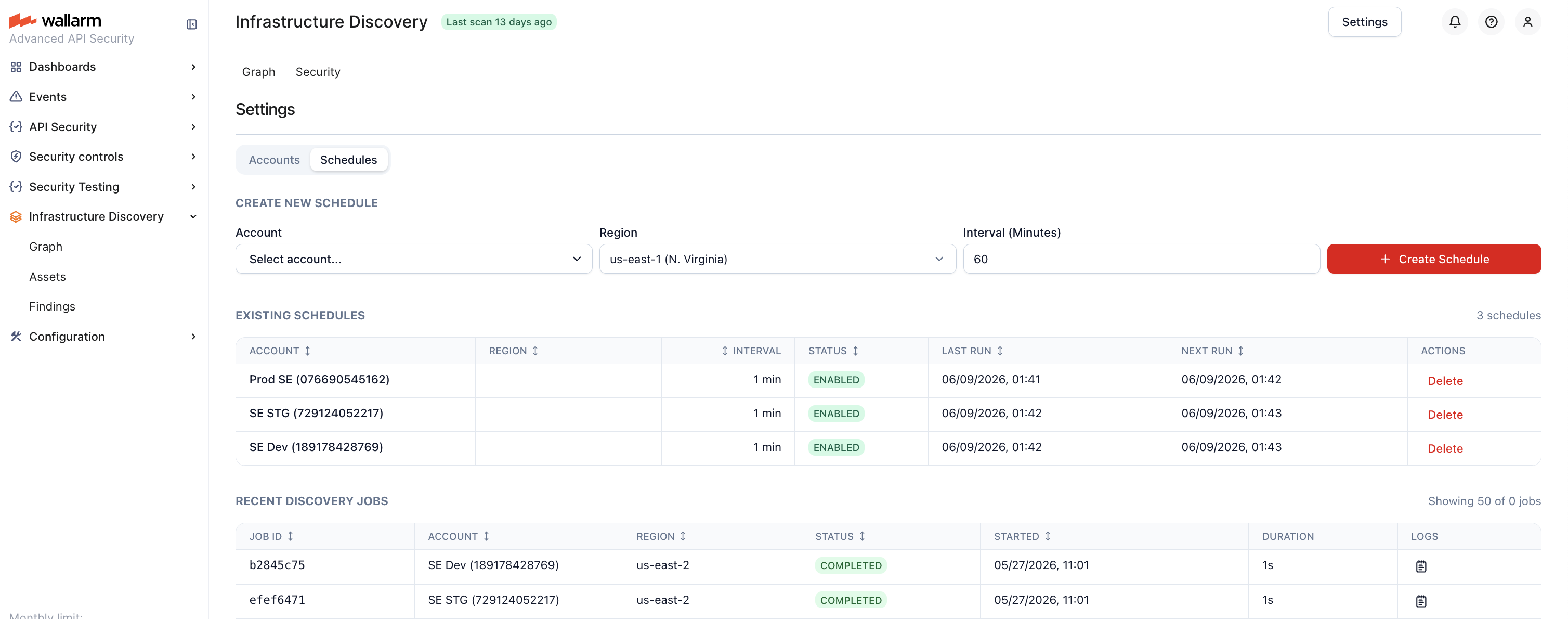

Infrastructure Discovery scans your connected accounts on a recurring schedule. On the Schedules tab in Settings, you create a schedule for an account and region and set how often it runs (the scan interval, in minutes). The minimum interval depends on your subscription plan — the free tier is limited to one scan every 24 hours, and paid plans allow more frequent scans.

You can also run an on-demand scan at any time with the Quick Scan action on the Accounts tab.

During each scan, Infrastructure Discovery enumerates all supported resource types across the account's selected regions.

Subscription limits¶

Your subscription plan determines:

• The number of AWS accounts you can connect

• The number of regions you can scan per account

• How frequently scans run (see Scan schedule)

The free tier includes a limited number of accounts and regions and a fixed 24-hour scan interval. Paid plans raise these limits and allow more frequent scans. Contact your Wallarm account team for the limits that apply to your plan.
