Authentication Flow Detection
¶
API Discovery analyzes HTTP headers and request parameters in the traffic to automatically identify the authentication flow used by each endpoint. This helps you find endpoints that lack proper authentication — the #1 API security risk.

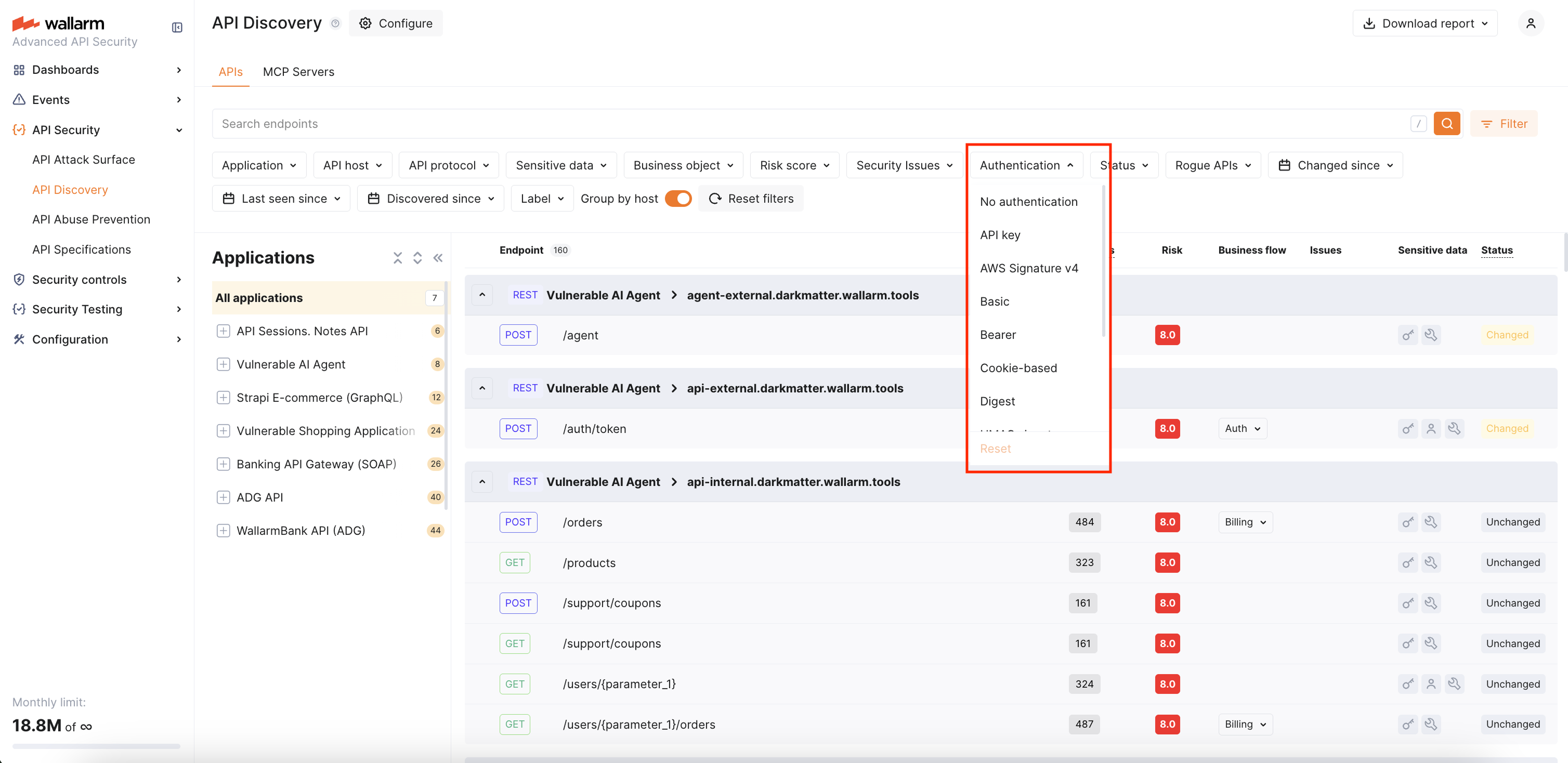

You can use the Authentication filter in the API Discovery inventory to quickly find unauthenticated endpoints or endpoints using a specific authentication type.
Requirements¶
Authentication flow detection is supported starting from NGINX Node 6.10.0 and Native Node 0.23.0.
Detected authentication types¶
Wallarm recognizes the following authentication types:
| Authentication flow | Description |
|---|---|
| API key | API key in headers (e.g., x-api-key) or query parameters. |
| AWS Signature v4 | AWS request signing (AWS4-HMAC-SHA256 in Authorization header). |
| Basic | HTTP Basic authentication. |
| Bearer | Bearer token in Authorization header. |
| Cookie-based | Session-based authentication using cookies (cookie / set-cookie headers). |
| Digest | HTTP Digest authentication. |
| Hawk | Hawk authentication scheme. |
| HMAC signature | HMAC-based request signing. |
| Negotiate | SPNEGO/Kerberos authentication. |
| NTLM | NTLM authentication. |
| SCRAM | Salted Challenge Response Authentication Mechanism. |
An endpoint can have multiple authentication types if different requests use different authentication mechanisms.
Authentication status¶
In the Authentication tab of the endpoint details, Wallarm displays the overall authentication status for the endpoint. The status is based on the last 7 days of traffic and reflects what percentage of requests contained authentication parameters with valid values:
| Status | Condition | Description |
|---|---|---|
| Consistent | 95%+ of requests authenticated | The endpoint is reliably protected by authentication. |
| Partial | 0–95% of requests authenticated | Some requests reach the endpoint without valid authentication. This may indicate recently added authentication that has not yet reached full coverage, or a misconfiguration. |
| Missing | 0% of requests authenticated | No valid authentication was detected in any requests to this endpoint over the observation period. |
7-day observation window
Authentication status and coverage are calculated based on the last 7 days of traffic. When authentication is newly added to an endpoint, it initially appears as Partial and gradually moves to Consistent as the 7-day window fills with authenticated requests.
Authentication parameters¶

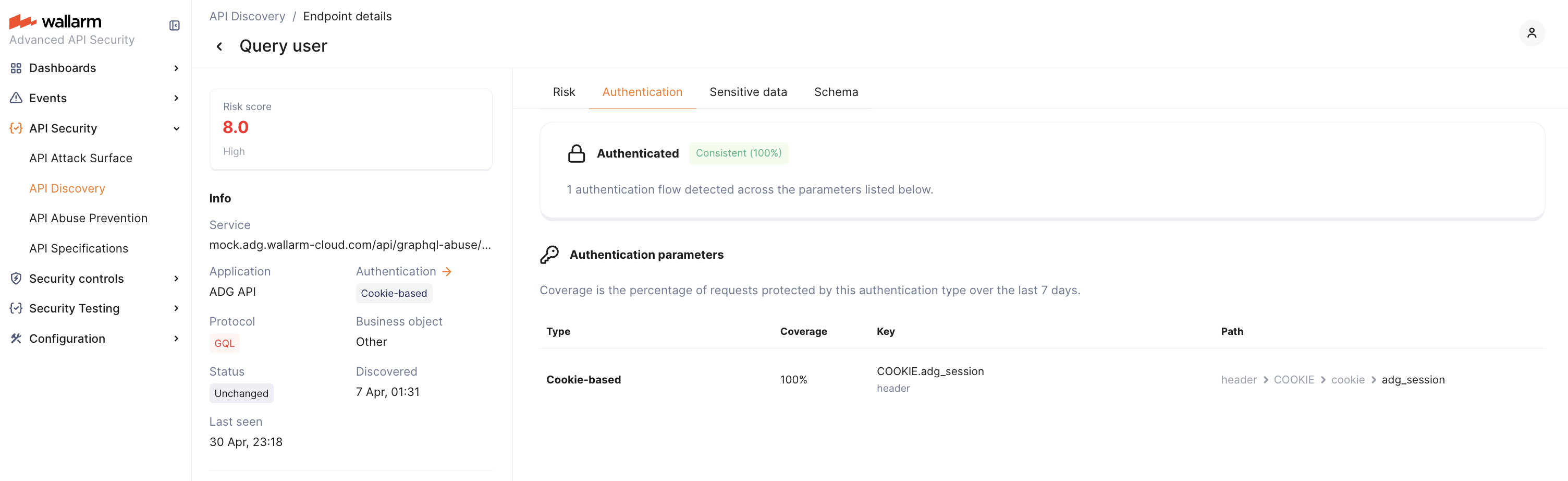

In the Authentication tab of the endpoint details, Wallarm lists every detected authentication parameter with the following details:
| Column | Description |
|---|---|
| Type | Authentication type (e.g., Bearer, Cookie, API key). |
| Coverage | Percentage of requests where this parameter contained a valid authentication value over the last 7 days. |
| Key | Parameter name and its context — header, cookie, or body field. |
| Path | Hierarchical location of the parameter within the request structure. |
A single endpoint can have multiple authentication parameters. For example, one endpoint might use a Bearer token in the Authorization header for 80% of requests and an API key in the body for 5%. Each parameter's coverage is calculated independently — coverages may not add up to 100%.
