What is new in Wallarm node (if upgrading an EOL node)

This page lists the changes available when upgrading the node of the deprecated version (3.6 and lower) up to version 4.10. Listed changes are available for both the regular (client) and multi-tenant Wallarm nodes.

Wallarm nodes 3.6 and lower are deprecated

Wallarm nodes 3.6 and lower are recommended to be upgraded since they are deprecated.

Node configuration and traffic filtration have been significantly simplified in the Wallarm node of version 4.x. Some settings of node 4.x are incompatible with the nodes of older versions. Before upgrading the modules, please carefully review the list of changes and general recommendations.

All-in-one installer

Now, when installing and upgrading Wallarm node as a dynamic module for NGINX in various environments, you can use the all-in-one installer designed to streamline and standardize the process of installation. This installer automatically identifies your operating system’s and NGINX versions, and install all the necessary dependencies.

The installer simplifies the process by automatically performing the following actions:

  1. Checking your OS and NGINX version.

  2. Adding Wallarm repositories for the detected OS and NGINX version.

  3. Installing Wallarm packages from these repositories.

  4. Connecting the installed Wallarm module to your NGINX.

  5. Connecting the filtering node to Wallarm Cloud using the provided token.

See details on how to deploy the node with all-in-one installer →

Breaking changes due to the deleted metrics

Starting from version 4.0, the Wallarm node does not collect the following collectd metrics:

  • curl_json-wallarm_nginx/gauge-requests - you can use the curl_json-wallarm_nginx/gauge-abnormal metric instead

  • curl_json-wallarm_nginx/gauge-attacks

  • curl_json-wallarm_nginx/gauge-blocked

  • curl_json-wallarm_nginx/gauge-time_detect

  • curl_json-wallarm_nginx/derive-requests

  • curl_json-wallarm_nginx/derive-attacks

  • curl_json-wallarm_nginx/derive-blocked

  • curl_json-wallarm_nginx/derive-abnormal

  • curl_json-wallarm_nginx/derive-requests_lost

  • curl_json-wallarm_nginx/derive-tnt_errors

  • curl_json-wallarm_nginx/derive-api_errors

  • curl_json-wallarm_nginx/derive-segfaults

  • curl_json-wallarm_nginx/derive-memfaults

  • curl_json-wallarm_nginx/derive-softmemfaults

  • curl_json-wallarm_nginx/derive-time_detect

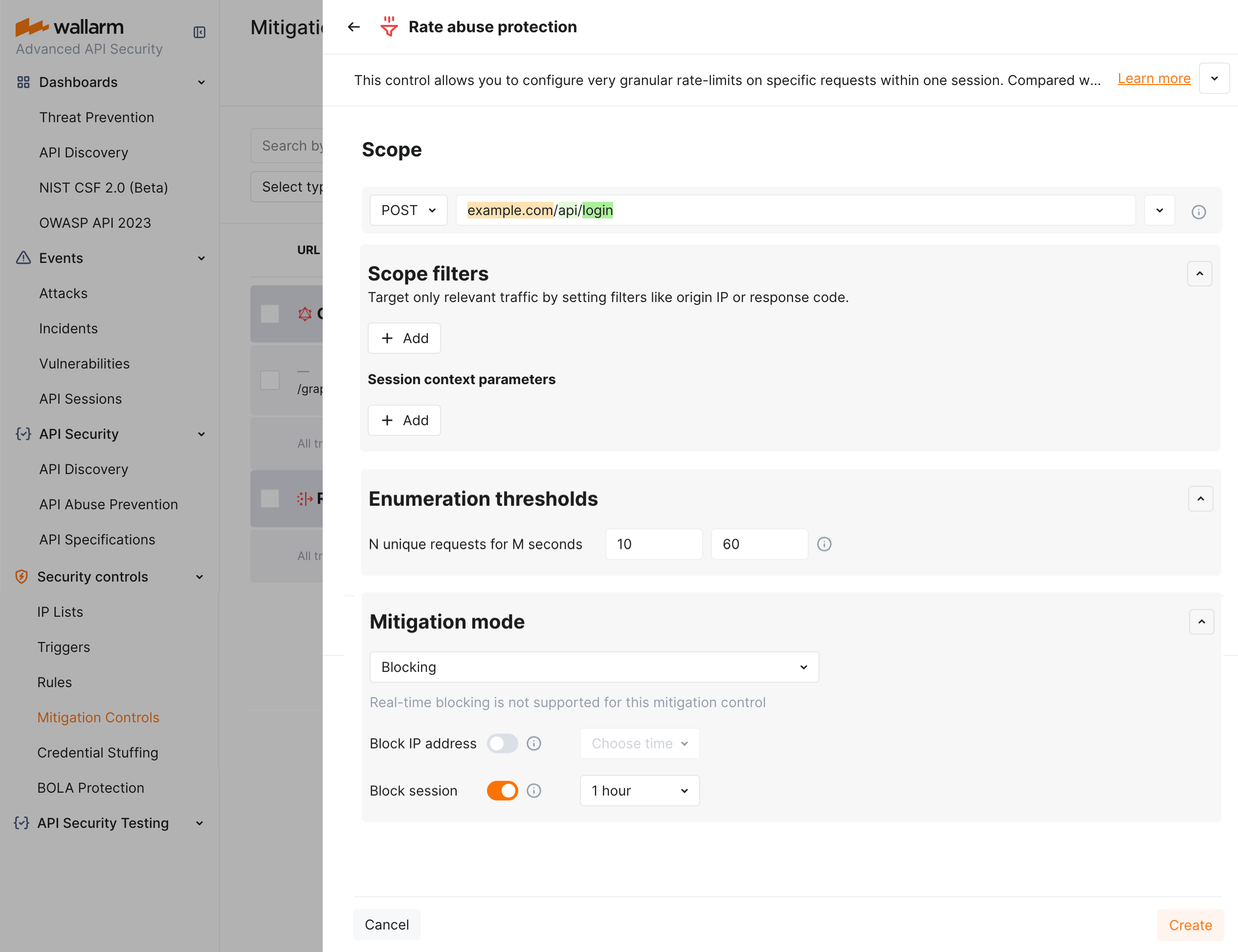

Rate limits

The lack of proper rate limiting has been a significant problem for API security, as attackers can launch high-volume requests causing a denial of service (DoS) or overload the system, which hurts legitimate users.

With Wallarm's rate limiting feature supported since Wallarm node 4.6, security teams can effectively manage the service's load and prevent false alarms, ensuring that the service remains available and secure for legitimate users. This feature offers various connection limits based on request and session parameters, including traditional IP-based rate limiting, JSON fields, base64 encoded data, cookies, XML fields, and more.

For example, you can limit API connections for each user, preventing them from making thousands of requests per minute. This would put a heavy load on your servers and could cause the service to crash. By implementing rate limiting, you can protect your servers from overload and ensure that all users have fair access to the API.

You can configure rate limits easily in the Wallarm Console UI → RulesSet rate limit by specifying the rate limit scope, rate, burst, delay, and response code for your particular use case.

Guide on rate limit configuration →

Although the rate limiting rule is the recommended method for setting up the feature, you can also configure rate limits using the new NGINX directives:

Credential stuffing detection

Beginning with release 4.10, Wallarm introduces real-time detection and notifications for credential stuffing attempts. Credential stuffing, the automated submission of stolen or weak username/email and password pairs into website login forms to illegitimately access user accounts, is now closely monitored. This feature allows you to identify accounts with compromised credentials and take action to secure them, such as notifying account owners and temporarily suspending account access.

Learn how to configure Credential Stuffing Detection

Attacks - credential stuffing

Selected artifacts supporting credential stuffing detection

A limited selection of artifacts, such as the all-in-one installer, NGINX Ingress Controller, NGINX-based Docker image, and cloud images (AMI, GCP Image), now support the newly introduced credential stuffing detection feature.

GraphQL API protection

Wallarm detects regular attacks (SQLi, RCE, etc.) in GraphQL by default. However, some aspects of the protocol allow implementing GraphQL specific attacks related to excessive information exposure and DoS.

Beginning with release 4.10.4, Wallarm introduces protection from these attacks. Protection is set by configuring your organization's GraphQL policy - a set of limits for the GraphQL requests. Requests exceeding any of set limits the filtering node will handle in accordance with the active filtration mode - will only register policy violations or will register and block such attempts.

To start using the functionality, you need to create at least one Detect GraphQL attacks rule in Wallarm Console.

Learn how to configure GraphQL API Protection

GraphQL thresholds

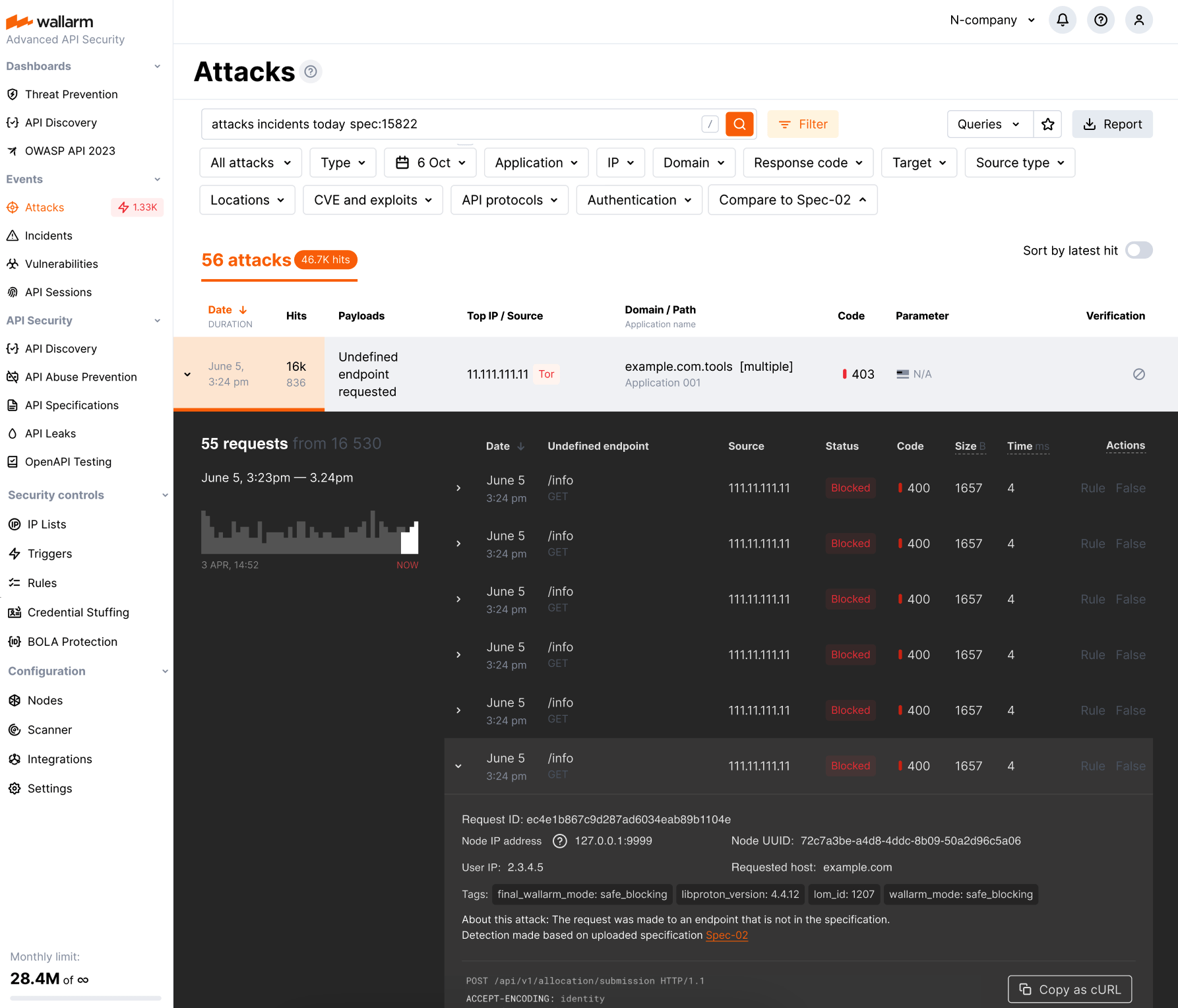

API Specification Enforcement

In this latest update, we introduce API Specification Enforcement feature. This filters incoming traffic, permitting only requests that comply with your API specifications. Using the Wallarm node, which sits between clients and your applications, it compares endpoint descriptions in your specifications with actual API requests. Discrepancies, such as undefined endpoint requests or those with unauthorized parameters, are either blocked or monitored as configured.

This strengthens security by preventing potential attack attempts and also optimizes API performance by avoiding overloading and misuse.

Additionally, this update introduces new parameters for some deployment options, enabling technical control over the feature's operation:

Learn how to configure API Specification Enforcement

Specification - use for applying security policies

Detection of the new attack types

Wallarm detects new attack types:

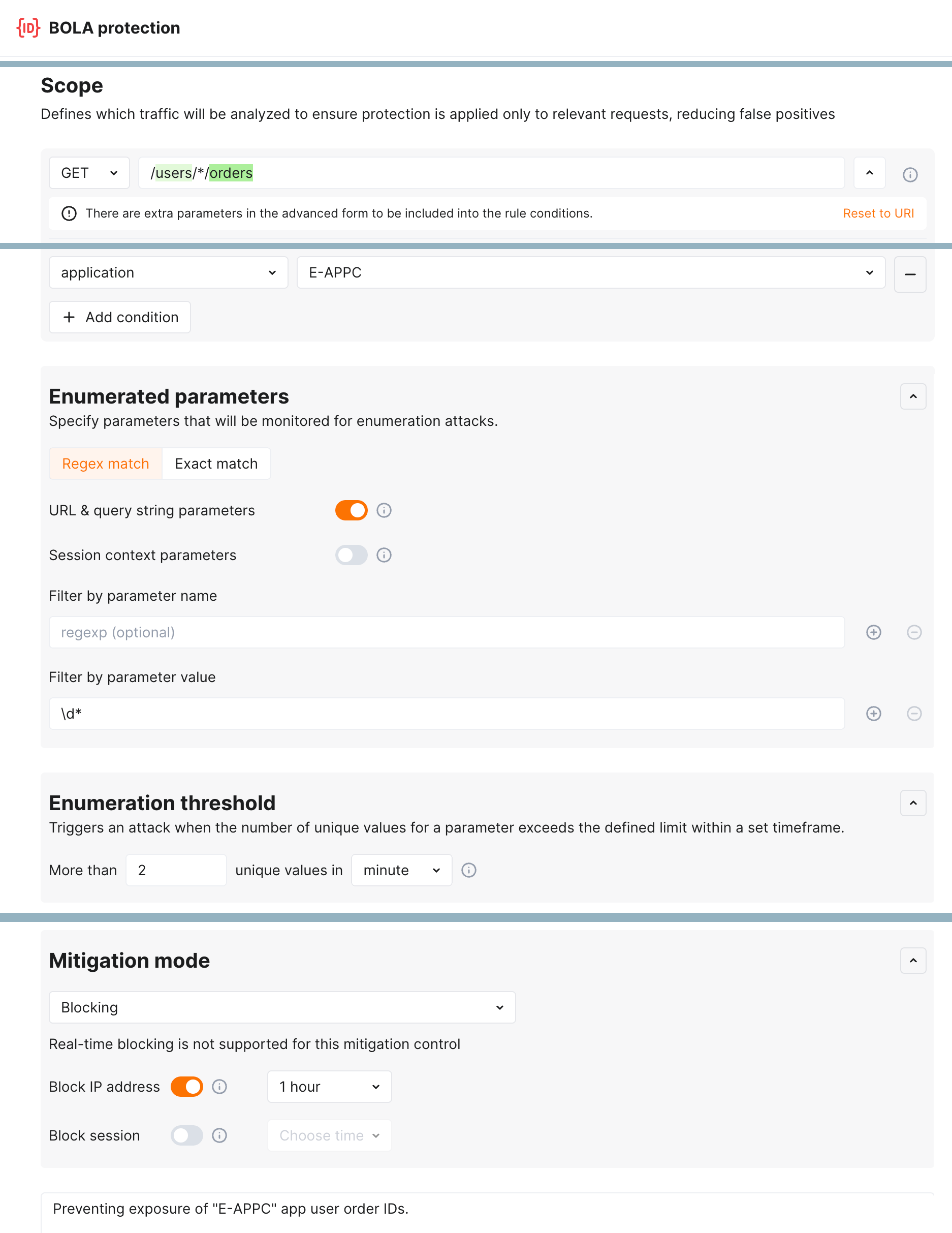

  • Broken Object Level Authorization (BOLA), also known as Insecure Direct Object References (or IDOR), became one of the most common API vulnerabilities. When an application includes an IDOR / BOLA vulnerability, it has a strong probability of exposing sensitive information or data to attackers. All the attackers need to do is exchange the ID of their own resource in the API call with an ID of a resource belonging to another user. The absence of proper authorization checks enables attackers to access the specified resource. Thus, every API endpoint that receives an ID of an object and performs any type of action on the object can be an attack target.

    To prevent exploitation of this vulnerability, Wallarm node 4.2 and above contain a new trigger which you can use to protect your endpoints from BOLA attacks. The trigger monitors the number of requests to a specified endpoint and creates a BOLA attack event when thresholds from the trigger are exceeded.

  • Mass Assignment

    During a Mass Assignment attack, attackers try to bind HTTP request parameters into program code variables or objects. If an API is vulnerable and allows binding, attackers may change sensitive object properties that are not intended to be exposed, which could lead to privilege escalation, bypassing security mechanisms, and more.

  • SSRF

    A successful SSRF attack may allow an attacker to make requests on behalf of the attacked web server; this potentially leads to revealing the web application's network ports in use, scanning the internal networks, and bypassing authorization.

Checking JSON Web Token strength

JSON Web Token (JWT) is a popular authentication standard used to exchange data between resources like APIs securely. JWT compromisation is a common aim of attackers as breaking authentication mechanisms provides them full access to web applications and APIs. The weaker JWTs, the higher chance for it to be compromised.

Starting from version 4.4, you can enable Wallarm to detect the following JWT weaknesses:

  • Unencrypted JWTs

  • JWTs signed using compromised secret keys

Checking JSON Web Tokens for attacks

JSON Web Token (JWT) is one of the most popular authentication methods. This makes it a favorite tool to perform attacks (for example SQLi or RCE) that are very difficult to find because the data in the JWT is encoded and it can be located anywhere in the request.

Wallarm node 4.2 and above find the JWT anywhere in the request, decodes it and blocks (in the appropriate filtration mode) any attack attempts through this authentication method.

Supported installation options

  • Wallarm Ingress controller based on the latest version of Community Ingress NGINX Controller, 1.9.5.

    Instructions on migrating to the Wallarm Ingress controller →

  • Added support for AlmaLinux, Rocky Linux and Oracle Linux 8.x instead of the deprecated CentOS 8.x.

    Wallarm node packages for the alternative operating systems will be stored in the CentOS 8.x repository.

  • Added support for Debian 11 Bullseye

  • Added support for Ubuntu 22.04 LTS (jammy)

  • Dropped support for CentOS 6.x (CloudLinux 6.x)

  • Dropped support for Debian 9.x

  • Dropped support for Debian 10.x for Wallarm to be installed as the module for either NGINX stable or NGINX Plus

  • Dropped support for the operating system Ubuntu 16.04 LTS (xenial)

  • Version of Envoy used in Wallarm Envoy-based Docker image has been increased to 1.18.4

See the full list of supported installation options →

New method for the serverless Wallarm node deployment

The new deployment method lets you configure the Wallarm CDN node outside your infrastructure in 15 minutes. You need to just point to the domain to be protected and add the Wallarm CNAME record to the domain's DNS records.

Instructions on the CDN node deployment

System requirements for the filtering node installation

  • Wallarm node instances now require access to the IP addresses below for downloading updates to attack detection rules and API specifications, as well as retrieving precise IPs for your allowlisted, denylisted, or graylisted countries, regions, or data centers.
  • The filtering node now uploads data to the Cloud using (US Cloud) and (EU Cloud) instead of and

    If your server with the deployed node has a limited access to the external resources and the access is granted to each resource separately, after upgrade to version 4.x the synchronization between the filtering node and the Cloud will stop. The upgraded node needs to be granted access to the API endpoint with the new port.

Unified registration of nodes in the Wallarm Cloud by tokens

With the new release of Wallarm node, email-password based registration of Wallarm nodes in the Cloud has been removed. It is now mandatory to switch to the new token-based node registration method to continue with Wallarm node 4.10.

The new release enables you to register the Wallarm node in the Wallarm Cloud by the token on any supported platform, which ensures a more secure and faster connection to the Wallarm Cloud as follows:

  • Dedicated user accounts of the Deploy role allowing only to install the node are no longer required.

  • Users' data remains securely stored in the Wallarm Cloud.

  • Two-factor authentication enabled for the user accounts does not prevent nodes from being registered in the Wallarm Cloud.

  • The initial traffic processing and request postanalytics modules deployed to separate servers can be registered in the Cloud by one node token.

Changes in node registration methods result in some updates in node types:

  • The node supporting the unified registration by token has the Wallarm node type. The script to be run on the server to register the node is named register-node.

    Previously, the Wallarm node was named cloud node. It also supported registration by the token but with the different script named addcloudnode.

    The cloud node is not required to be migrated to the new node type.

  • The regular node supporting the registration by "email-password" passed to the addnode script is deprecated.

    Starting from version 4.0, registration of the node deployed as the NGINX, NGINX Plus module or the Docker container looks as follows:

    1. Create the Wallarm node in Wallarm Console and copy the generated token.
    2. Run the register-node script with the node token passed or run the Docker container with the WALLARM_API_TOKEN variable defined.

    Regular node support

    The regular node type is deprecated in release 4.x and will be removed in future releases.

    It is recommended to replace the regular node with the Wallarm node before the regular type is removed. You will find the appropriate instructions in the node upgrade guides.

Terraform module to deploy Wallarm on AWS

Starting from release 4.0, you can easily deploy Wallarm to AWS from the Infrastructure as Code (IaC)-based environment using the Wallarm Terraform module.

The Wallarm Terraform module is the scalable solution meeting the best industry standards of security and failover ensuring. During its deployment, you can choose either the proxy or mirror deployment option based on your requirements for the traffic flow.

We have also prepared the usage examples for both deployment options involving basic deployment configurations as well as advanced ones compatible with such solutions as AWS VPC Traffic Mirroring.

Documentation on the Wallarm Terraform module for AWS

Collecting statistics on blocked requests from denylisted sources

Starting from the release 4.8, the Wallarm NGINX‑based filtering nodes now collect statistics on requests that have been blocked when their source is found in the denylist, enhancing your ability to evaluate attack strength. This includes access to the blocked request statistics and their samples, helping you minimize unnoticed activity. You can find this data in the Wallarm Console UI's Attacks section.

When using automatic IP blocking (e.g., with the brute force trigger configured), now you can analyze both the initial triggering requests and the samples of subsequent blocked requests. For requests blocked due to manual denylisting of their sources, the new functionality enhances visibility into blocked source actions.

We have introduced new search tags and filters within the Attacks section to effortlessly access the newly introduced data:

  • Utilize the blocked_source search to identify requests that were blocked due to manual denylisting of IP addresses, subnets, countries, VPNs, and more.

  • Employ the multiple_payloads search to pinpoint requests blocked by the Number of malicious payloads trigger. This trigger is designed to denylist sources that originate malicious requests containing multiple payloads, a common characteristic of multi-attack perpetrators.

  • Additionally, the api_abuse, brute, dirbust, and bola search tags now encompass requests whose sources were automatically added to the denylist by the relevant Wallarm triggers for their respective attack types.

This change introduces the new configuration parameters which by default are set to on to enable the functionality but can be switched to off to disable it:

Wallarm AWS image distributed with the ready-to-use script

If following the Infrastructure as Code (IaC) approach, you may need to use the cloud-init script to deploy the Wallarm node to AWS. Starting from release 4.0, Wallarm distributes its AWS cloud image with the ready‑to‑use script.

Specification of the Wallarm cloud-init script

Simplified multi-tenant node configuration

For the multi-tenant nodes, tenants and applications are now defined each with its own directive:

Instructions on the multi-tenant node upgrade

Filtration modes

  • New safe blocking filtration mode.

    This mode enables a significant reduction of false positive number by blocking only malicious requests originating from graylisted IP addresses.

  • Analysis of request sources is now performed only in the safe_blocking and block modes.

    • If the Wallarm node operating in the off or monitoring mode detects the request originating from the denylisted IP, it does not block this request.
    • Wallarm node operating in the monitoring mode uploads all the attacks originating from the allowlisted IP addresses to the Wallarm Cloud.

More details on Wallarm node modes →

Request source control

The following parameters for request source control have been deprecated:

There are the following new features for request source control:

Details on adding IPs to the allowlist, denylist, and graylist →

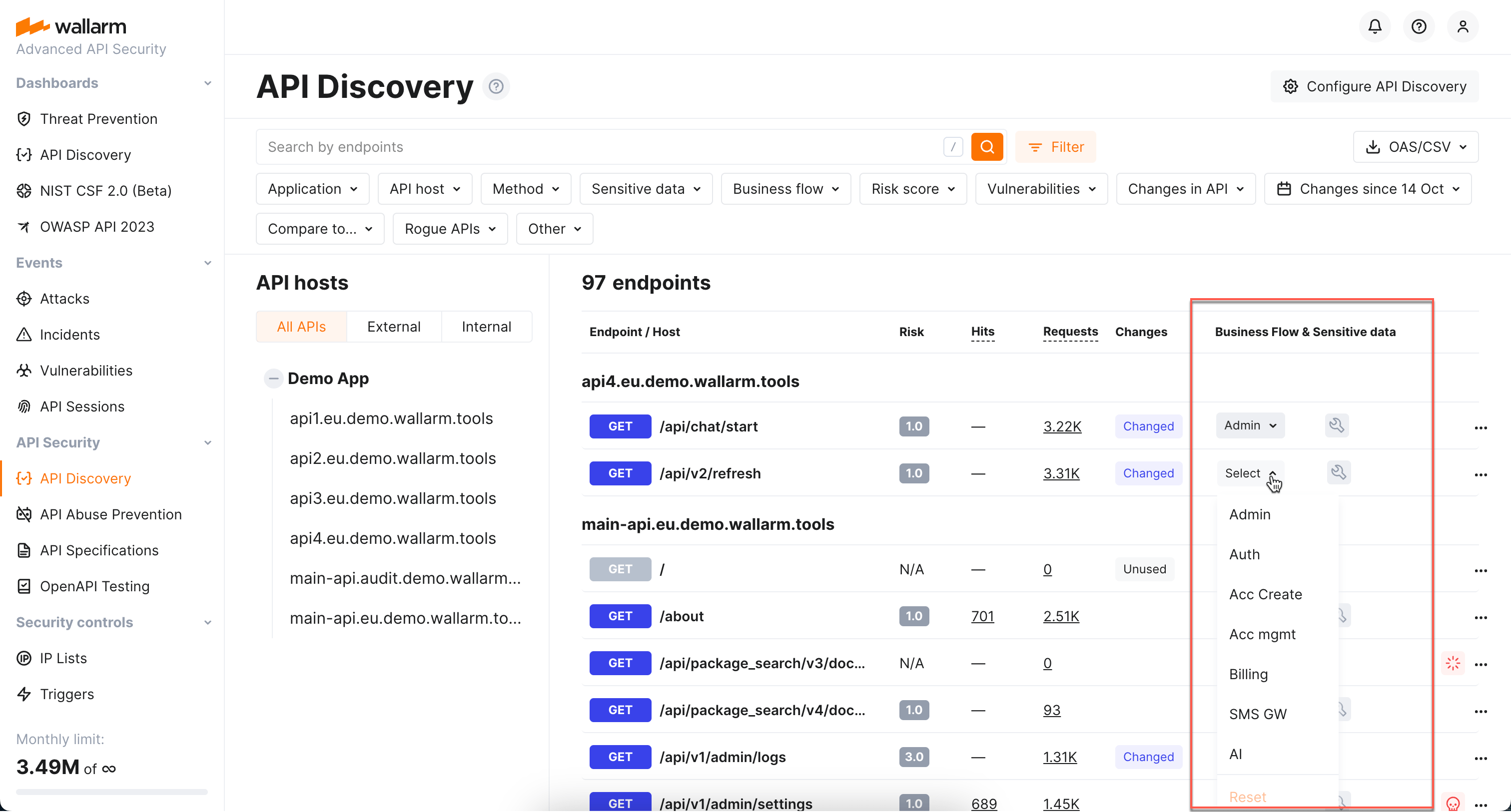

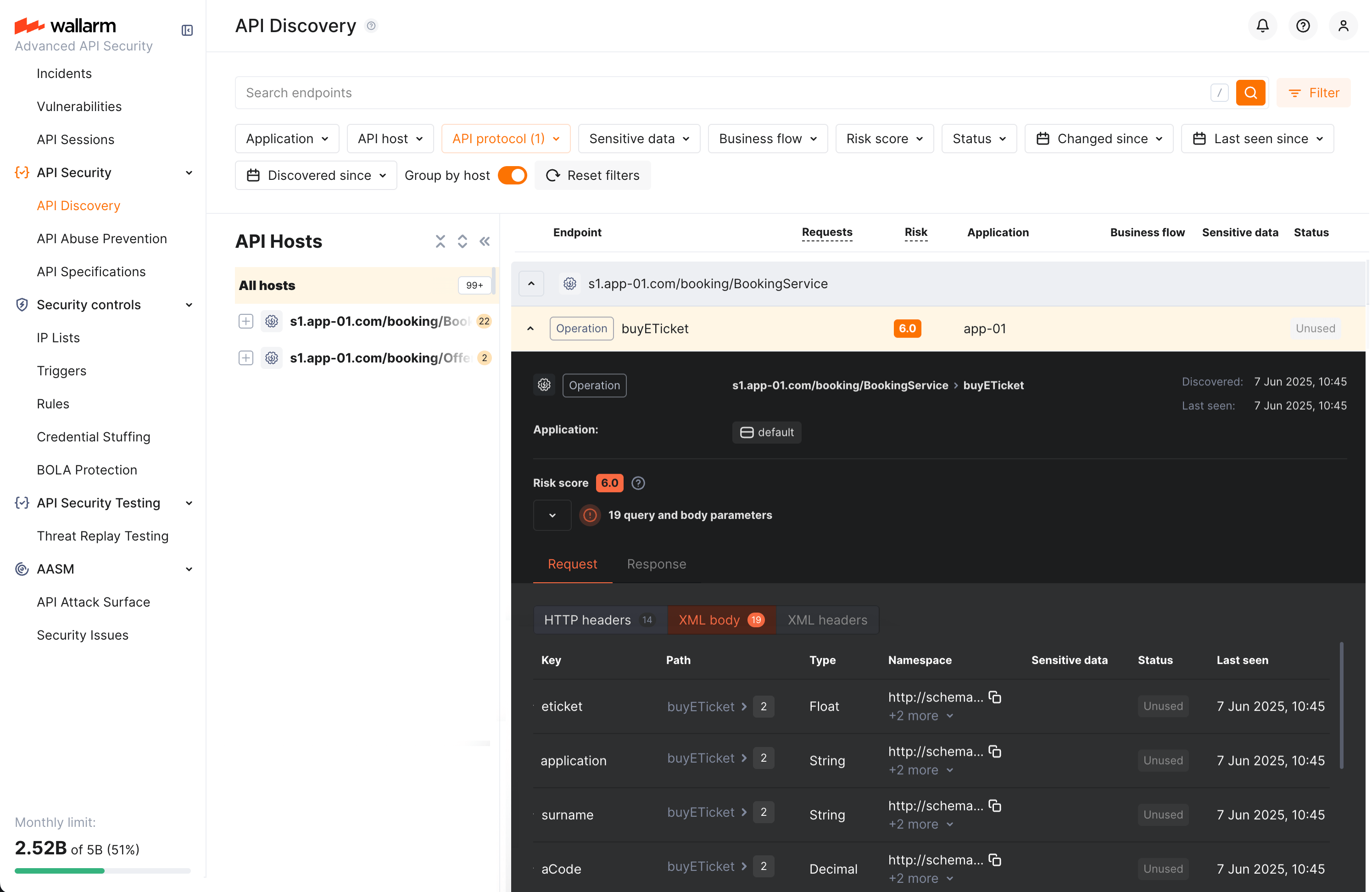

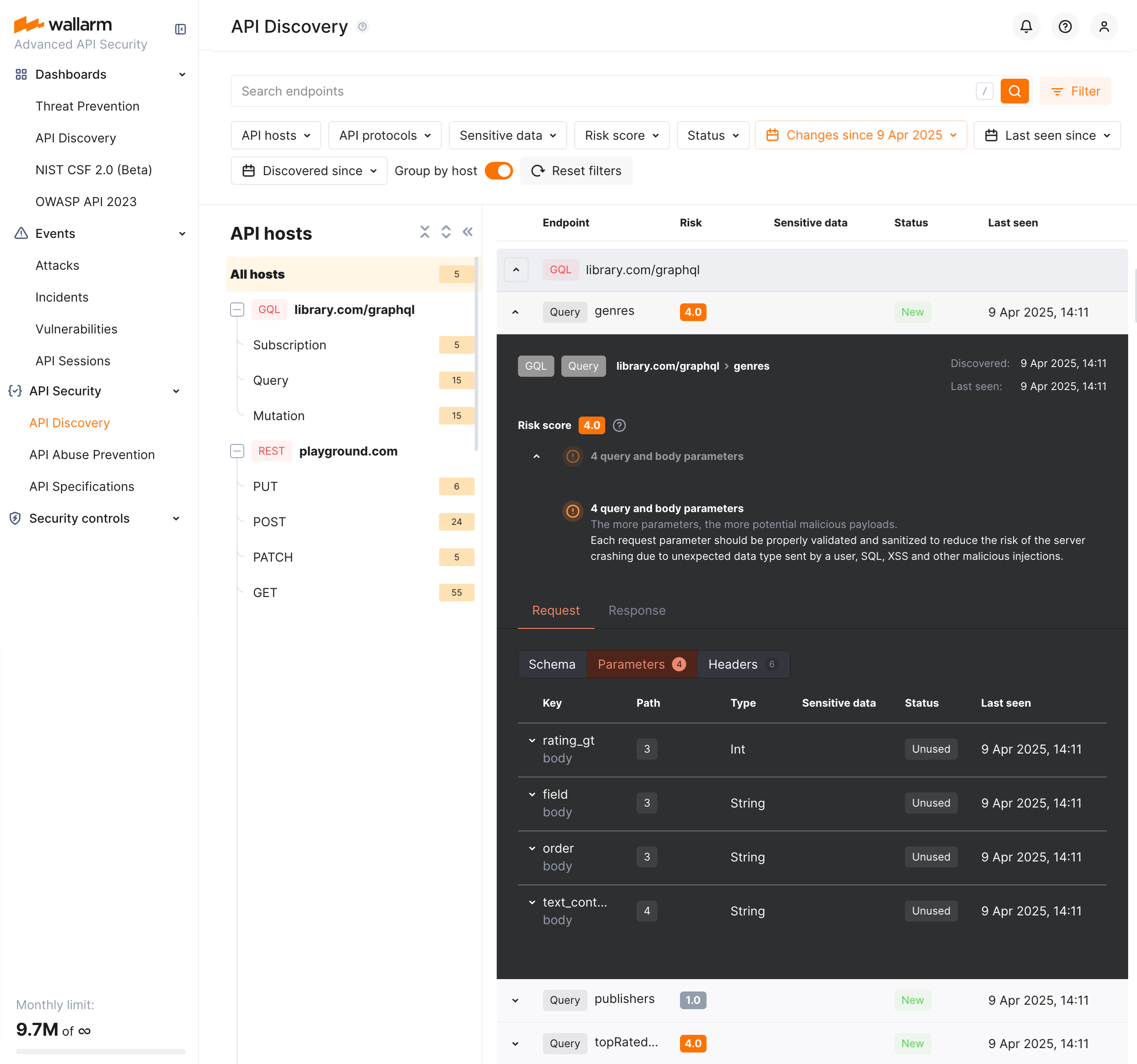

New module for API inventory discovery

New Wallarm nodes are distributed with the module API Discovery automatically identifying the application API. The module is disabled by default.

Details on the API Discovery module →

Enhanced attack analysis with the libdetection library

Attack analysis performed by Wallarm has been enhanced by involving an additional attack validation layer. Wallarm node 4.4 and above in all form-factors (including Envoy) are distributed with the libdetection library enabled by default. This library performs secondary fully grammar-based validation of all SQLi attacks reducing the number of false positives detected among SQL injections.

Memory consumption increase

With the libdetection library enabled, the amount of memory consumed by NGINX/Envoy and Wallarm processes may increase by about 10%.

Details on how Wallarm detects attacks →

The rule enabling the overlimit_res attack detection fine-tuning

We have introduced the new rule allowing the overlimit_res attack detection fine-tuning.

The overlimit_res attack detection fine-tuning via the NGINX and Envoy configuration files is considered to be the deprecated way:

  • The rule allows setting up a single request processing time limit as the wallarm_process_time_limit NGINX directive and process_time_limit Envoy parameter did before.

  • The rule allows to block or pass the overlimit_res attacks in accordance with the node filtration mode instead of the wallarm_process_time_limit_block NGINX directive and process_time_limit_block Envoy parameter configuration.

The listed directives and parameters have been deprecated and will be deleted in future releases. It is recommended to transfer the overlimit_res attack detection configuration from directives to the rule before. Relevant instructions are provided for each node deployment option.

If the listed parameters are explicitly specified in the configuration files and the rule is not created yet, the node processes requests as set in the configuration files.

Optimized and more secure NGINX-based Docker image

The Docker image of Wallarm's NGINX-based filtering node has been revamped for enhanced security and optimization. Key updates include:

  • The Docker image is now built on Alpine Linux, replacing Debian, to provide a more secure and lightweight artifact. Please note that the auth-pam and subs-filter NGINX modules, previously included, are no longer packaged with the Docker image.

  • Updated to the latest stable version of NGINX, 1.26.1, replacing the previous 1.14.x version. Although most vulnerabilities in 1.14.x were patched by the Debian team (the prior image was based on Debian 10.x), upgrading to 1.26.1 addresses remaining vulnerabilities for improved security.

    The NGINX upgrade, along with the switch to Alpine Linux, resolves the HTTP/2 Rapid Reset Vulnerability (CVE-2023-44487), due to the Alpine-specific patch implemented in NGINX 1.26.1.

  • Support for processors with ARM64 architecture, which is automatically identified during the installation process.

  • Inside the Docker container, all operations now utilize the non-root user wallarm, a change from the previous root user setup. It affects the NGINX process as well.

  • The /wallarm-status endpoint has been updated to export metrics in the Prometheus format, instead of JSON. This applies specifically when accessing the endpoint from outside the Docker container. Note that the WALLARM_STATUS_ALLOW environment variable must be set appropriately for this functionality.

  • The Docker image is now built using the all-in-one installer, which changes its internal directory structure:

    • Log file directory: /var/log/wallarm/opt/wallarm/var/log/wallarm.
    • Directory with files containing credentials for the Wallarm node to connect to the Cloud: /etc/wallarm/opt/wallarm/etc/wallarm.
  • The path to the /usr/share directory → /opt/wallarm/usr/share.

    This introduces the new path to the sample blocking page, located at /opt/wallarm/usr/share/nginx/html/wallarm_blocked.html, and to the diagnostic script, found at /opt/wallarm/usr/share/wallarm-common/

The newly released product features are also supported by the new NGINX-based Docker image of the new format.

Optimized cloud images

The Amazon Machine Image (AMI) and Google Cloud Machine Image have been optimized. Key updates include:

  • The cloud images now use Debian 12.x (bookworm), the latest stable release, replacing the deprecated Debian 10.x (buster) for enhanced security.

  • Updated to the newer version of NGINX, 1.22.0, replacing the previous 1.14.x version.

  • Support for processors with ARM64 architecture, which is automatically identified during the installation process.

  • The cloud images are now built using the all-in-one installer, which changes its internal directory structure:

    • Node registration script: /usr/share/wallarm-common/register-node/opt/wallarm/usr/share/wallarm-common/
    • Log file directory: /var/log/wallarm/opt/wallarm/var/log/wallarm.
    • Directory with files containing credentials for the Wallarm node to connect to the Cloud: /etc/wallarm/opt/wallarm/etc/wallarm.
    • The path to the /usr/share directory → /opt/wallarm/usr/share.

      This introduces the new path to the sample blocking page, located at /opt/wallarm/usr/share/nginx/html/wallarm_blocked.html, and to the diagnostic script, found at /opt/wallarm/usr/share/wallarm-common/

    • The /etc/nginx/conf.d/wallarm.conf file with the global Wallarm filtering node settings has been removed.

The newly released product features are also supported by the cloud images of the new format.

New blocking page

The sample blocking page /usr/share/nginx/html/wallarm_blocked.html has been updated. In the new node version, it has new layout and supports the logo and support email customization.

New blocking page with the new layout looks as follows by default:

Wallarm blocking page

More details on the blocking page setup →

New parameters for basic node setup

Disabling IPv6 connections for the NGINX-based Wallarm Docker container

The NGINX-based Wallarm Docker image 4.2 and above supports the new environment variable DISABLE_IPV6. This variable enables you to prevent NGINX from IPv6 connection processing, so that it only can process IPv4 connections.

Renamed parameters, files and metrics

  • The following NGINX directives and Envoy parameters have been renamed:

    Parameters with previous names are still supported but will be deprecated in future releases. The parameter logic has not changed.

  • The Ingress annotation has been renamed to

    The annotation with the previous name is still supported but will be deprecated in future releases. The annotation logic has not changed.

  • The file with the custom ruleset build /etc/wallarm/lom has been renamed to /etc/wallarm/custom_ruleset. In the file system of new node versions, there is only the file with the new name.

    Default values of the NGINX directive wallarm_custom_ruleset_path and Envoy parameter custom_ruleset have been changed appropriately. New default value is /etc/wallarm/custom_ruleset.

  • The private key file /etc/wallarm/license.key has been renamed to /etc/wallarm/private.key. Starting from the node version 4.0 the new name is used by default.

  • The collectd metric gauge-lom_id has been renamed to gauge-custom_ruleset_id.

    In new node versions, the collectd service collects both the deprecated and new metrics. The deprecated metric collection will be stopped in future releases.

    All collectd metrics →

  • The /var/log/wallarm/addnode_loop.log log file in the Docker containers has been renamed to /var/log/wallarm/registernode_loop.log.

Parameters of the statistics service

  • The Prometheus metric wallarm_custom_ruleset_id has been enhanced with the addition of a format attribute. This new attribute represents the custom ruleset format. Meanwhile, the principal value continues to be the custom ruleset build version. Here is an example of the updated wallarm_custom_ruleset_id value:

    wallarm_custom_ruleset_id{format="51"} 386
  • The Wallarm statistics service returns the new rate_limit parameters with the Wallarm rate limiting module data. New parameters cover rejected and delayed requests, as well as indicate any problems with the module's operation.

  • The number of requests originating from denylisted IPs is now displayed in the statistic service output, in the new parameter blocked_by_acl and in the existing parameters requests, blocked.

  • The service return one more new parameter custom_ruleset_ver which points to the custom ruleset format being used by Wallarm nodes.

  • The following node statistics parameters have been renamed:

    • lom_apply_timecustom_ruleset_apply_time
    • lom_idcustom_ruleset_id

    In new node versions, the endpoint temporarily returns both the deprecated and new parameters. The deprecated parameters will be removed from the service output in future releases.

Details on the statistics service →

New variables to configure the node logging format

The following node logging variables have been changed:

  • wallarm_request_time has been renamed to wallarm_request_cpu_time

    This variable means time in seconds the CPU spent processing the request.

    The variable with the previous name is deprecated and will be removed in future releases. The variable logic has not changed.

  • wallarm_request_mono_time has been added

    This variable means time in seconds the CPU spent processing the request + time in the queue.

Increasing the performance by omitting attack search in requests from denylisted IPs

The new wallarm_acl_access_phase directive enables you to increase the Wallarm node performance by omitting the attack search stage during the analysis of requests from denylisted IPs. This configuration option is useful if there are many denylisted IPs (e.g. the whole countries) producing high traffic that heavily loads the working machine CPU.

Easy grouping for node instances

Now you can easily group node instances using one API token with the Deploy role for their installation together with the WALLARM_LABELS variable and its group label.

For example:

docker run -d -e WALLARM_API_TOKEN='<API TOKEN WITH DEPLOY ROLE>' -e NGINX_BACKEND='' -e WALLARM_API_HOST='' -e WALLARM_LABELS='group=<GROUP>' -p 80:80 wallarm/node:4.10.9-1

...will place node instance into the <GROUP> instance group (existing, or, if does not exist, it will be created).

Addressed vulnerabilities

The 4.10.1 release addresses multiple high and critical severity vulnerabilities in Wallarm deployment artifacts, enhancing the software's security posture by replacing previously vulnerable components.

Among the vulnerabilities addressed are those identified by CVE-2020-36327, CVE-2023-37920, and several others. A full list of resolved vulnerabilities, along with their corresponding CVEs specific to each node deployment artifact, can be found within the inventory of node artifact versions.

HTTP/2 stream length control directive

The wallarm_http_v2_stream_max_len directive to control the maximum length of HTTP/2 streams has been introduced. It helps in preventing excessive memory consumption in long-lived gRPC connections.

To use this variable in a Docker container, specify it in your NGINX configuration file and mount the file into the container.

Distinct search tags for Account Takeover, Scraping and Security Crawlers

Distinct search tags for the account_takeover, scraping, and security_crawlers attack types have been introduced, improving specificity over the previous general api_abuse tag.

Upgrade process

  1. Review recommendations for the modules upgrade.

  2. Upgrade installed modules following the instructions for your Wallarm node deployment option:

  3. Migrate allowlist and denylist configuration from previous Wallarm node versions to 4.10.

Other updates in Wallarm products and components →
