Threat Replay Testing Setup ¶

This article describes how to enable and configure Wallarm's Threat Replay Testing.

Enable¶

Threat Replay Testing is disabled by default. To enable and run:

Make sure you have the Advanced API Security subscription plan.
Proceed to Wallarm Console → Threat Replay Testing by following the link for the US Cloud or EU Cloud, and toggle on the Enable Threat Replay Testing switch.

If Threat Replay Testing is not presented, contact Wallarm's technical support.
Add IP addresses of Threat Replay Testing to the whitelists.
Go to the Test policies tab and create at least one policy.

IP addresses¶

It is recommended to add Threat Replay Testing IP addresses to the whitelists of your software or hardware facilities (besides Wallarm) that you use to automatically filter and block traffic. This will prevent Threat Replay Testing from being blocked by these facilities.

The lists of such addresses for US and EU Clouds is provided here.

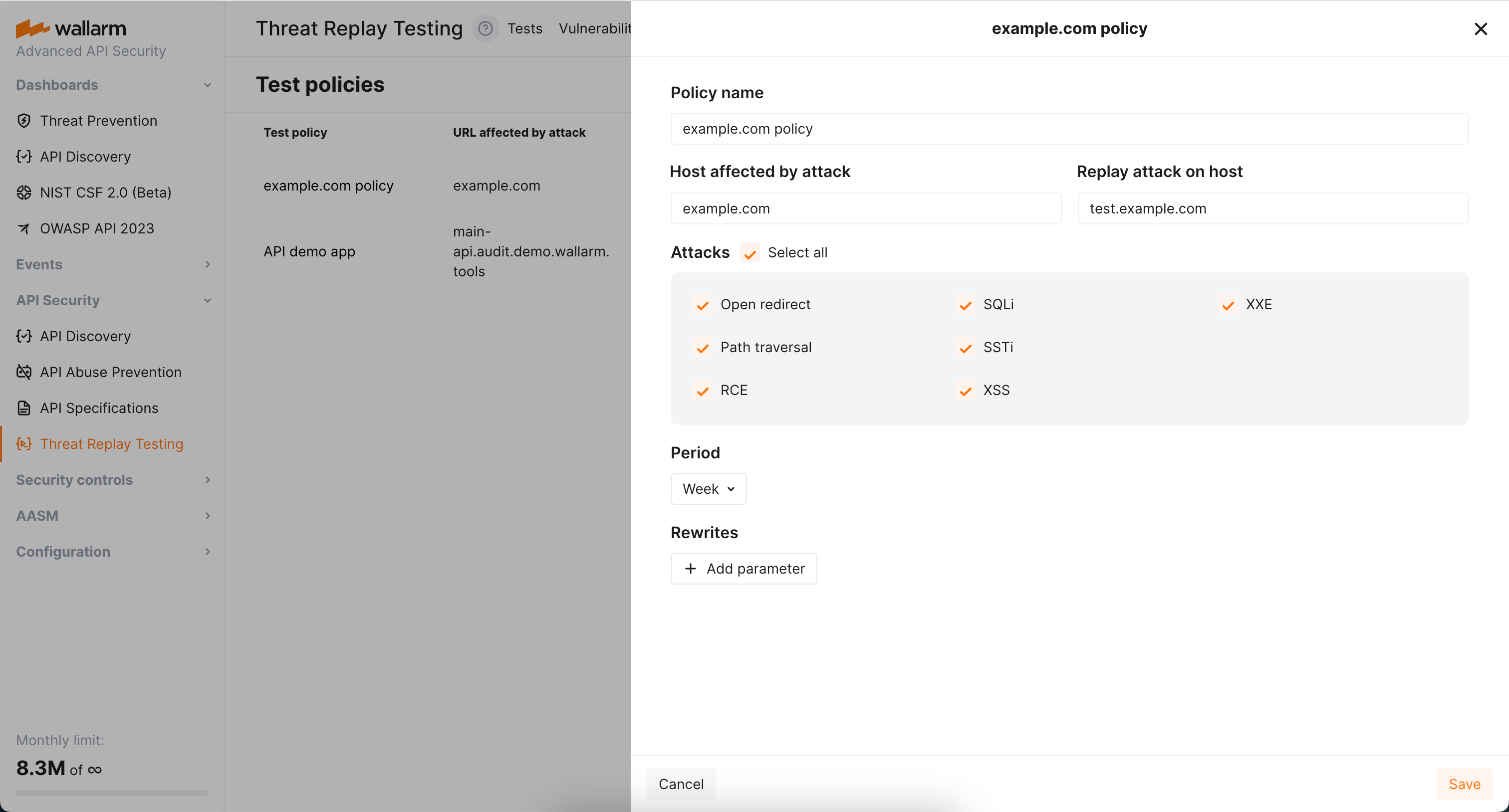

Configure test policies¶

When the attack on some endpoint is detected by the filtering node, it triggers enabled Threat Replay Testing to run tests to check whether this endpoint is vulnerable to this attack type.

Will these tests be run and how exactly, is defined by test policies, each defining:

For which host the tests should be run.
On which environment the tests should be run.
For which attack type the tests should be run (see limitations).
How often the re-test should be run for this endpoint and attack type.
Optionally, how the test request should be modified before executing on the test environment.

How several test policies interact¶

Consider the following:

No policies → no tests.
No policies for this host / attack type → no tests.
Several policies affecting the host → several separate tests.

About the time: if test was already performed for this endpoint and attack type and new attacks of this type on this endpoint occur, test will not be re-run before the Period is expired.

Host and replay host¶

Use Host affected by attack and Replay attack on host fields to define for which host the tests should be run and on which environment theses tests should be run.

You can use regular expressions, including capturing groups and backreferences in both fields. Find below the demonstration of the most common scenarios.

Scenario #1: recheck attacks on arbitrary subdomains on a specific host¶

Host affected by the attack: .+\.wallarm\.com
Replay attack on host: test.wallarm.com

Result:

Any attack on www.wallarm.com will be tested on test.wallarm.com.
Any attack on dev.wallarm.com will be tested on test.wallarm.com.

Scenario #2: substitution in the middle of the hostname¶

Host affected by the attack: (.+)\.wallarm\.com
Replay attack on host: \1.test-wallarm.com

Result:

Attack on www.wallarm.com will be tested on www.test-wallarm.com.
Attack on dev.wallarm.com will be tested on dev.test-wallarm.com.

Scenario #3: recheck any request on the same host¶

Host affected by the attack: (.+)
Replay attack on host: \1

Result:

Attack on www.wallarm.com will be tested on www.wallarm.com
Attack on dev.wallarm.com will be tested on dev.wallarm.com

Scenario #4: recheck attack on specific host on a specific host¶

Host affected by the attack: www\.wallarm\.com
Replay attack on host: test.wallarm.com

Result:

Attack onwww.wallarm.com will be tested on test.wallarm.com
Attack on dev.wallarm.com will not be tested

Rewrites¶

By default, Threat Replay Testing retains the original request data, except for stripping specific authentication parameters. You can use the Rewrites section of test policies to modify the original request elements before generating test attack set based on them. This can be particularly useful when replacing original authentication data with test data or conducting attack replays on alternative addresses.

Modification of any original request element

You can modify only headers (header) and paths (uri) of the original requests. Other request elements cannot be modified or added.

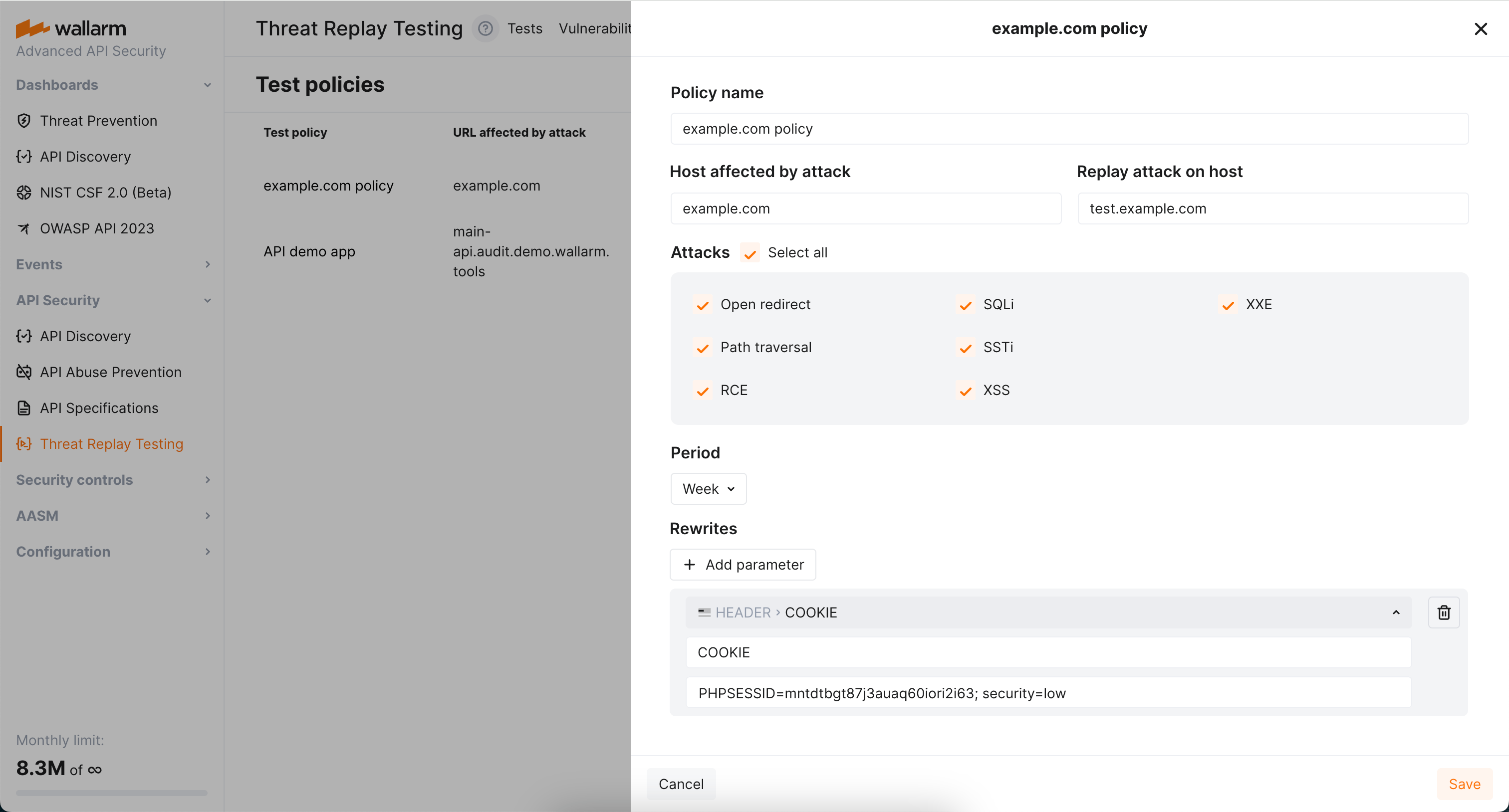

Rewrite example

The following is the rewrite to ensure attacks replayed on example.com carry the value PHPSESSID=mntdtbgt87j3auaq60iori2i63; security=low in the COOKIE header.
