MCP Server Discovery

Wallarm's API Discovery detects Model Context Protocol (MCP) servers in your traffic, captures their primitives, and displays them in the API inventory alongside your REST, GraphQL, SOAP, and gRPC endpoints.

Requirements

MCP discovery is enabled by default when API Discovery is active — no additional configuration is needed.

How MCP detection works

The Wallarm node identifies MCP traffic by detecting JSON-RPC 2.0 requests with MCP-specific methods. Once detected, the MCP server is added to the MCP Servers tab in API Discovery.

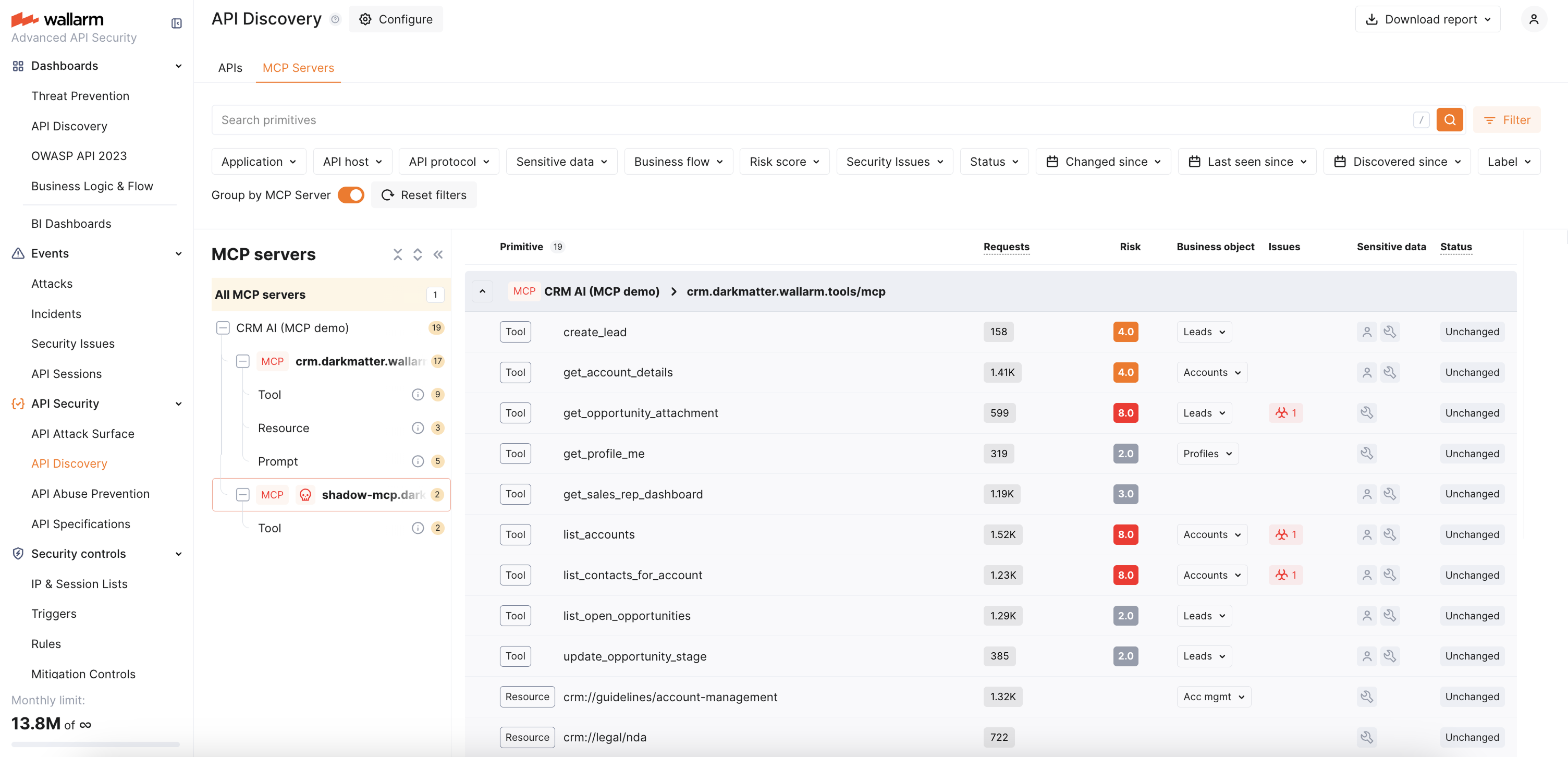

Discovered MCP Servers

The node automatically enables 100% response parsing for discovered MCP endpoints to ensure complete schema capture. The captured schema is uploaded to the Wallarm Cloud.

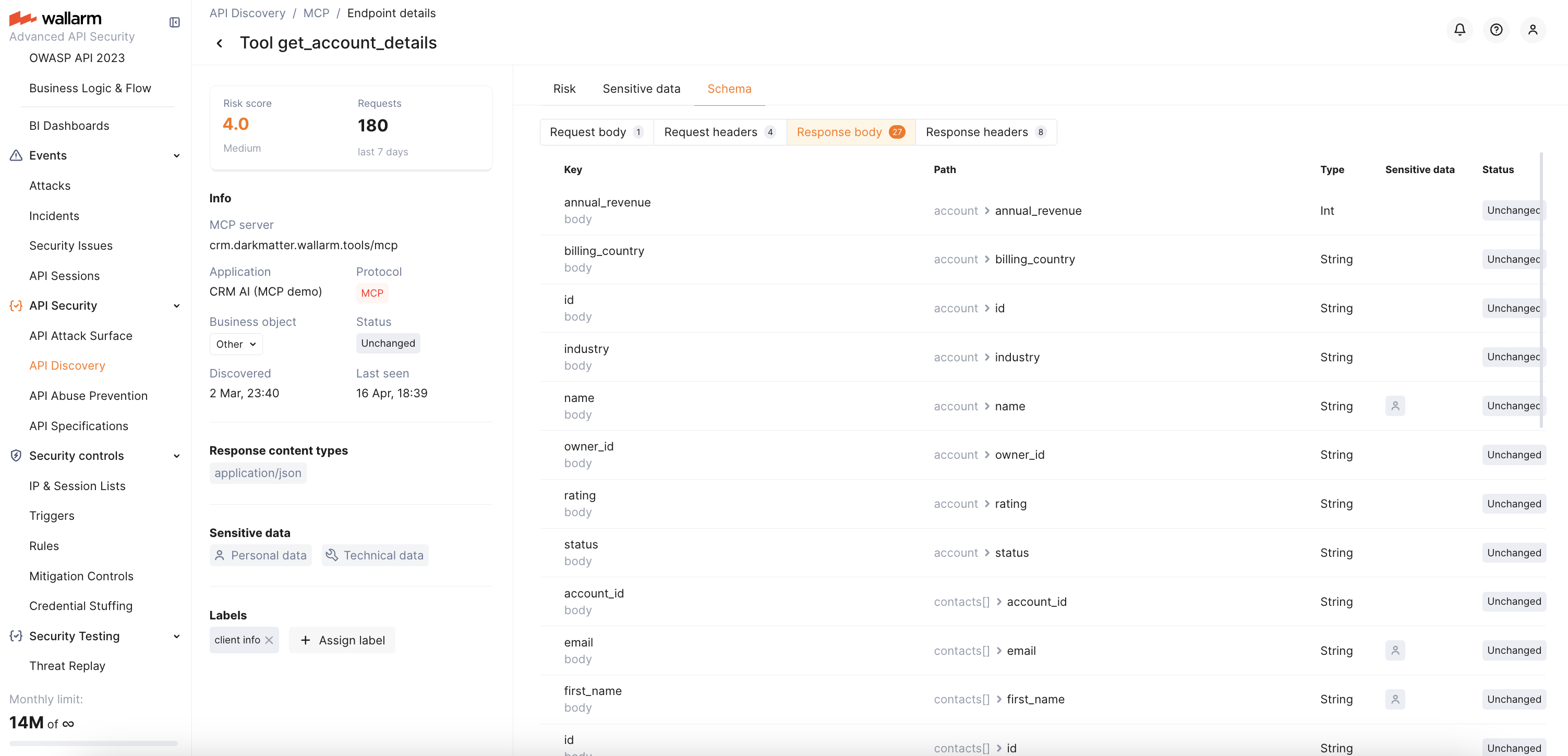

Schema of discovered MCP primitive

Discovered primitives

For each discovered MCP server, Wallarm captures three MCP primitive types from tools/list, resources/list, and prompts/list responses:

  • Tools — invocable functions exposed by the MCP server (e.g., get_user_profile, create_lead)

  • Resources — data and files available for reading (e.g., crm://legal/nda)

  • Prompts — parametrized templates for common workflows (e.g., account_research_prompt)

For each discovered MCP server, the API Discovery UI displays:

  • MCP server version

  • Primitive name and description

  • Tool parameter types and descriptions (in the Schema tab)

  • Resource MIME types

  • Request counters for the last 7 days

See Exploring API Inventory and MCP Servers → MCP primitive details for more information on what is displayed for each primitive type.

Using discovered MCP servers for protection

Discovered MCP servers can be used as a scope when creating MCP mitigation controls — ACL policies, request verification rules, and tool input schema enforcement. When you create a mitigation control, the MCP server URI and primitives offer autocomplete suggestions based on API Discovery data.

Auto-created MCP Session Configuration

Within 30 minutes of discovering an MCP server, Wallarm automatically creates an MCP Session Configuration for it with default session identification rules (extracting session ID from the MCP-SESSION-ID header). This enables MCP Sessions — grouping MCP requests into logical sessions visible in the MCP Sessions tab.

You can customize the auto-created session configuration to extract additional parameters such as user identity and role. See MCP Session Configuration for details.
