Attack Analysis¶

This article explains how to analyze attacks detected by Wallarm and respond to them.

Wallarm displays detected attacks in the Attacks section of Wallarm Console. There, Wallarm groups malicious requests into attacks and summarizes them with statistics, and you can open any attack to inspect its individual requests and respond to them.

In Wallarm:

• Attack is a group of malicious requests that share the grouping attributes you selected

• Request is an original malicious request plus metadata added by the node

• Malicious payload is a part of the request with an attack sign

Read details here.

Attacks page¶

The page presents attacks for the selected period and lets you shape what you see:

• Views are tabs above the filter. Each view stores a filter, a grouping, a time range, and a column layout, so you can switch between saved perspectives on your attack data in one click. See Attack Search and Filters.

• The time range selector limits the data to a period of up to 6 months.

• Group by controls how requests are combined into attacks: by attack type (the default), by source IP, not at all, or by a custom combination of up to 4 attributes. See Attack Search and Filters.

• The filter field narrows the list down to the attacks you are interested in. See Attack Search and Filters.

• Statistic is a collapsible panel with charts summarizing the filtered data: requests with attacks over time, top source IPs, status code breakdown, top attacked endpoints and hosts, top attack types and subtypes. Clicking an element of a chart drills into the corresponding attacks.

The table below the panel lists the attacks themselves. Use Table settings to choose, reorder, resize, and pin columns; the column set is stored in the view. To get the data outside of Wallarm Console, use Export attacks as CSV.

Attack details¶

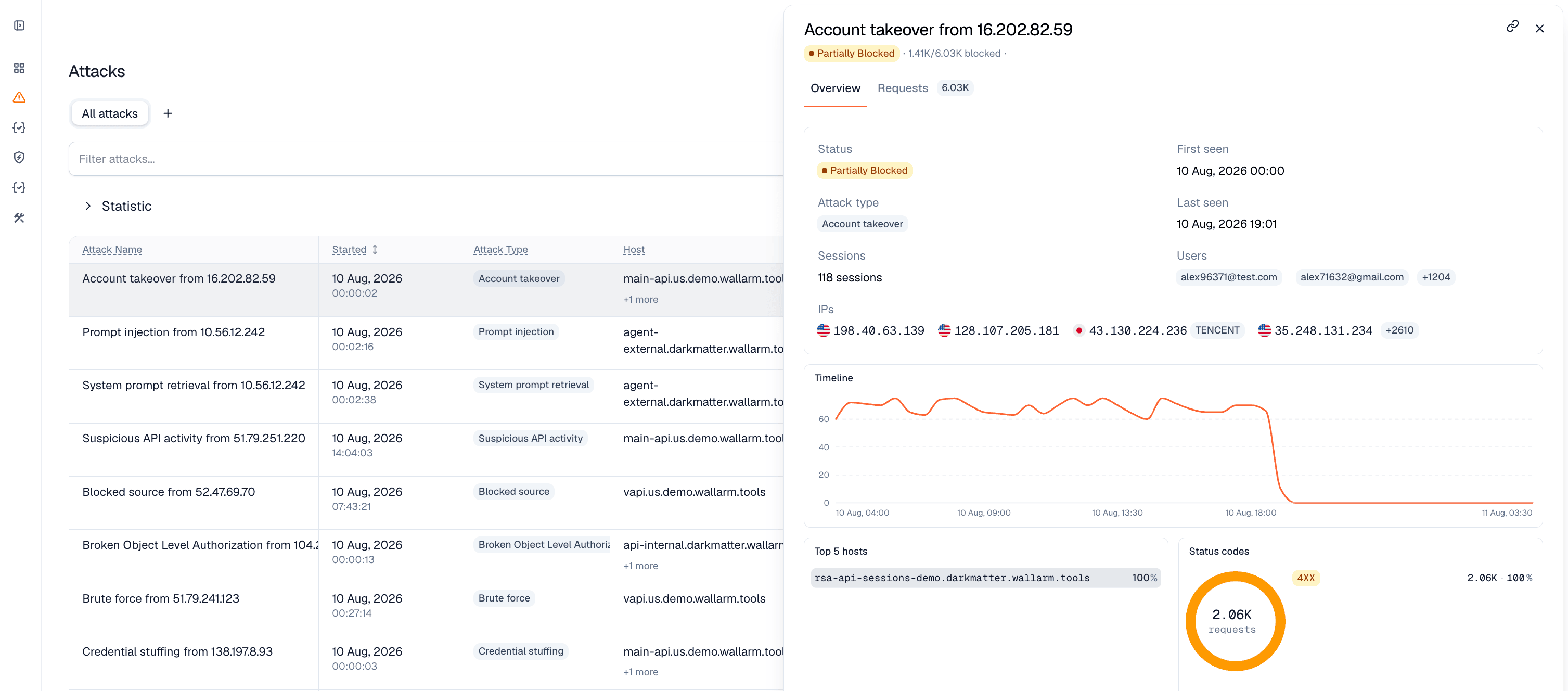

Clicking an attack opens a resizable drawer with the attack details. The drawer stays open while you click through the table, so you can compare attacks without losing your place.

Overview¶

The Overview tab summarizes the attack: its status, type, when it was first and last seen, the sessions, users, and source IPs involved, a timeline of its requests, and the distribution of its top hosts and response status codes.

The Status field shows what the node did with the attack:

• Blocked - all requests of the attack were blocked by the filtering node.

• Partially Blocked - some requests of the attack were blocked and others were only registered.

• Monitoring - all requests of the attack were registered but not blocked.

Requests¶

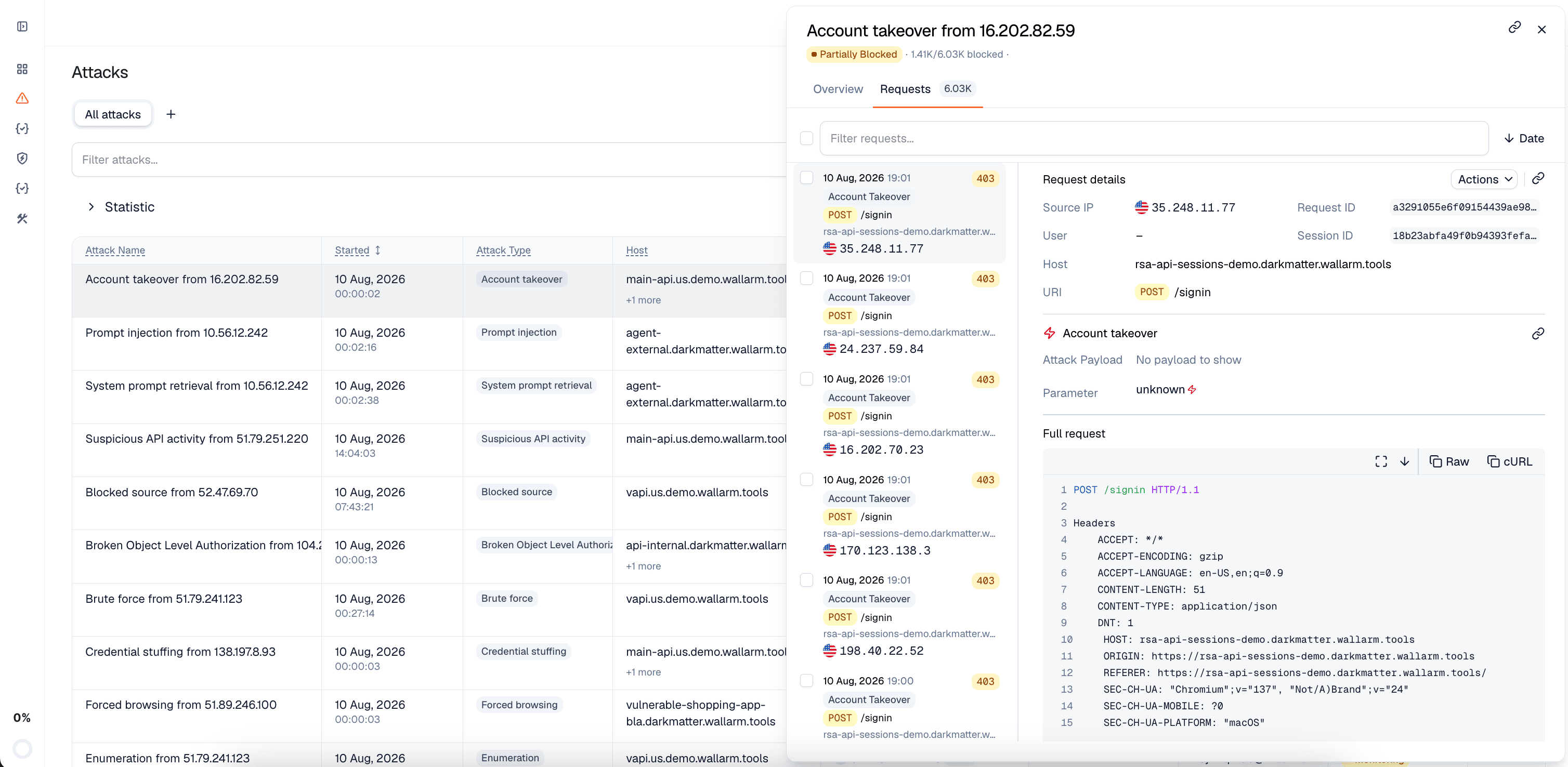

The Requests tab lists the individual malicious requests of the attack and shows the details of the selected one.

Request details include the source IP, user, host, URI, request and session identifiers, and, for each detected attack sign, the malicious payload, the request point it was found in, and the CWE, OWASP, and CAPEC classifications. Full request shows the complete HTTP request, which you can copy as raw HTTP or as a cURL command.

Only unique requests are stored in the attack details. Repeated malicious requests are dropped from uploading to the Wallarm Cloud and not displayed. This process is called hit sampling. Hit sampling does not affect the quality of attack detection and Wallarm node continues to protect your applications and APIs even with hit sampling enabled.

Use the checkboxes to select several requests and apply an action to all of them at once. The filter field above the list narrows the requests down within the open attack.

Responding to attacks¶

It is important to understand if your applications and APIs are properly protected from the attacks to have the possibility to adjust the protection measures if necessary. You can use information from the Attacks section to get this understanding and respond correspondingly.

Actions on an attack sign¶

These response actions are available at the request level. Open an attack, switch to the Requests tab, and select a request: each detected attack sign in its details carries an action bar with the measures available for it. Wallarm decides which actions apply and shows only those:

Adjusting protection by attack type¶

To respond to an attack, identify what type of attack took place, understand which Wallarm mechanism reacted to it, and adjust that mechanism if necessary. The table below maps attack types to the mechanism behind them and to the place where you tune it.

Before adjusting, it is worth investigating the full context of the attack's requests: the session they belong to and the full sequence of requests in it. This shows all activity of the threat actor and what resources can be compromised.

False positives¶

A false positive occurs when attack signs are detected in a legitimate request.

You can handle it in two ways, depending on whether you only want to correct the data or also change what the node detects.

Mark as false positive¶

Marking removes the request from the attack statistics and hides it from the attack list, so your data reflects that the detection was not real. It does not change detection — the node still flags identical requests in future.

In the request details, use Mark as false positive (FP) (select several requests first to mark them at once). The same action reverts a mark.

Wallarm hides false positives by default — to review them, filter by Verification Status.

Create a false-positive rule¶

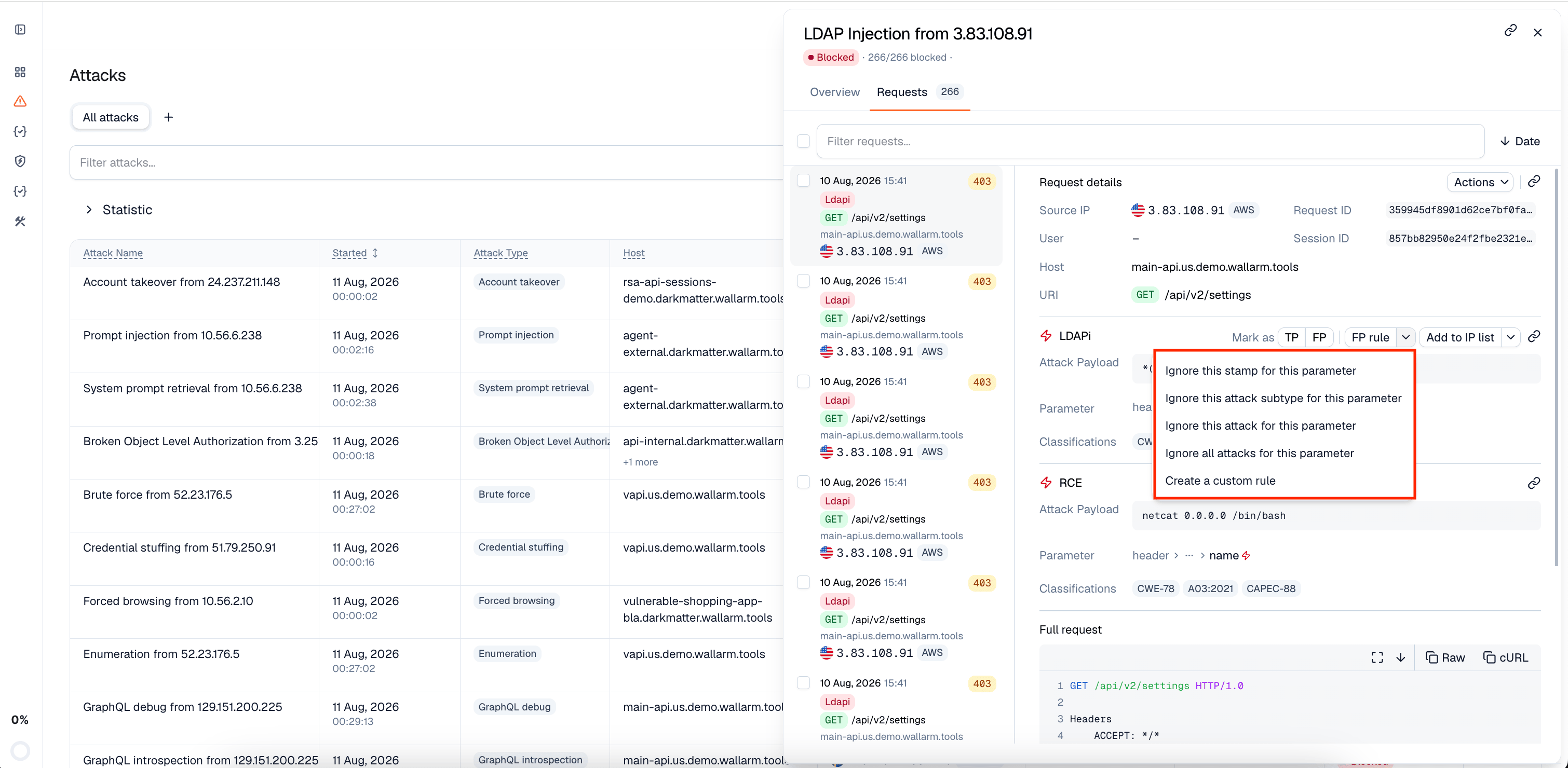

To stop the node from detecting such requests in future, use FP rule — a prefilled rule where you choose how broadly to skip detection for the attacked parameter, from narrowest to broadest:

• Ignore this stamp for this parameter — this exact attack sign (stamp) in the parameter.

• Ignore this attack subtype for this parameter — this attack subtype in the parameter.

• Ignore this attack for this parameter — this attack type in the parameter regardless of a malicious payload.

• Ignore all attacks for this parameter — all attacks in the parameter.

• Create a custom rule — open the rule editor to define the conditions and action yourself.

A stamp is one specific variation of an attack, and each attack type has many stamps.

Full context of threat actor activities¶

Once the malicious request is detected by Wallarm and displayed in the Attacks section as the part of some attack, you can see the full context of this request: to which user session it belongs and what the full sequence of requests in this session is. This allows you to investigate all activity of the threat actor to understand attack vectors and what resources can be compromised.

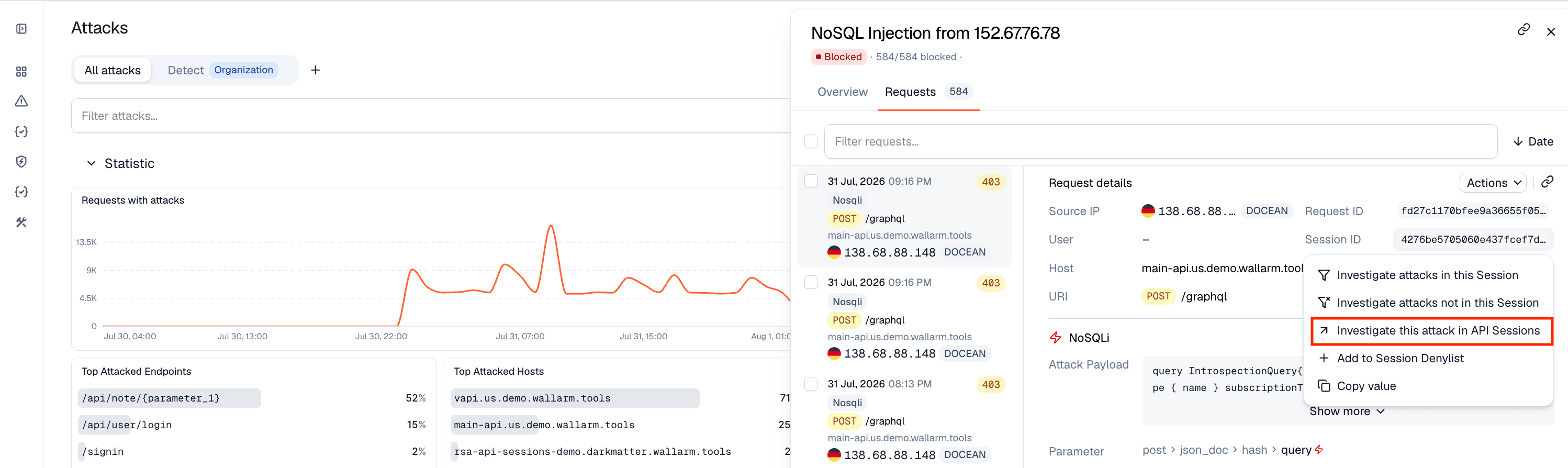

To perform this analysis, open the attack, switch to the Requests tab, and select a request. In the request details, open the Session ID field menu and select Investigate this attack in API Sessions. Wallarm opens the API Sessions section filtered: the session that the initial request belongs to is displayed; only the initial request is displayed within this session.

Remove the filter by request ID to see all other requests in the session: now you have the full picture of what was going on within the session the malicious request belongs to.

Sharing an attack or request¶

To pass an attack to a colleague, use the share button in the attack details. Wallarm generates a link that opens the same attack with the same filter and time range applied, so the recipient sees exactly what you see.

You can also share an individual request. In the Requests tab, open the request and use its share button. Wallarm generates a link that opens the same request within its attack.

Dashboards¶

Wallarm provides comprehensive dashboards to help you analyze detected attacks.

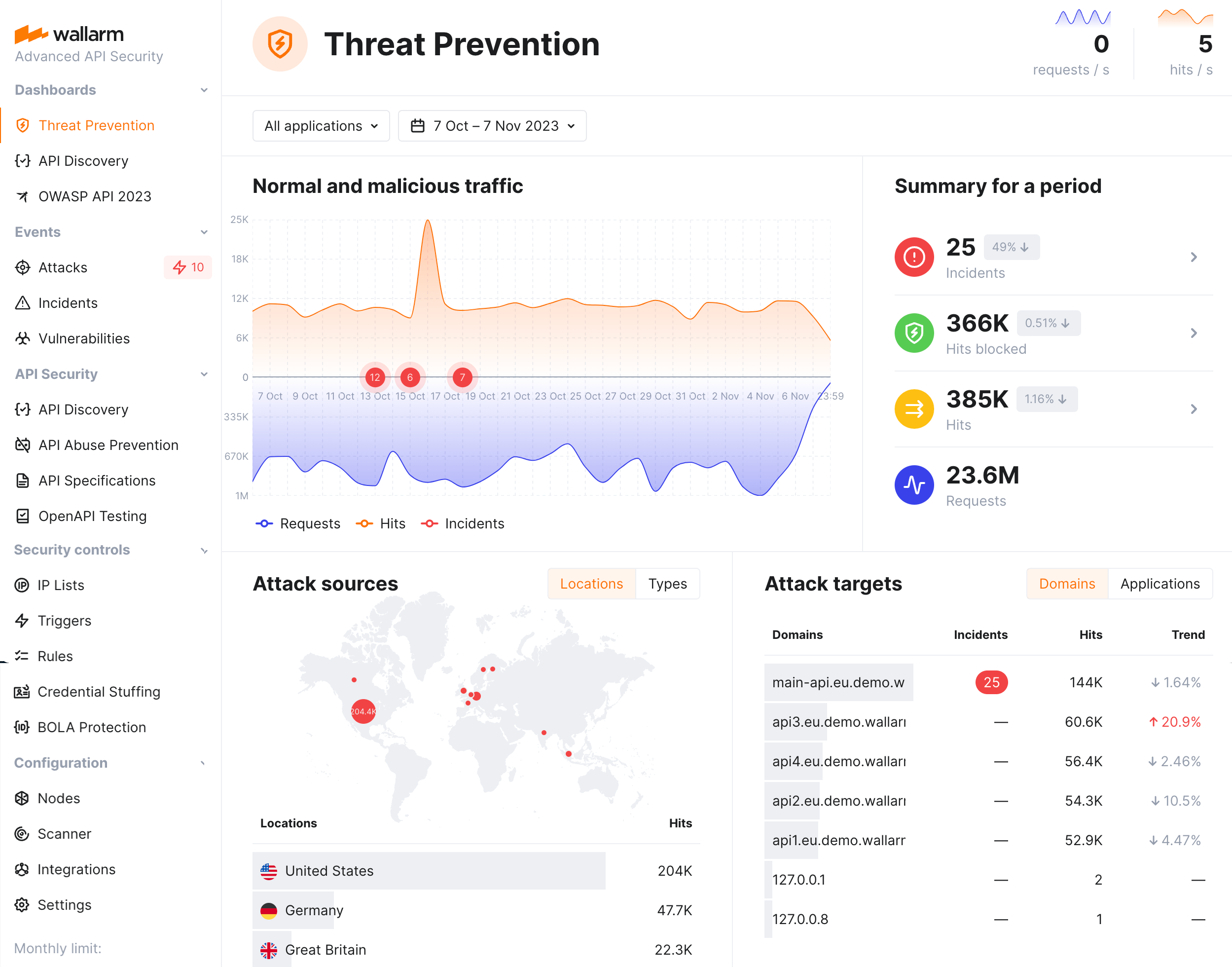

Wallarm's Threat Prevention dashboard provides general metrics on your system's security posture, including multi-aspect information about attacks: their sources, targets, types and protocols.

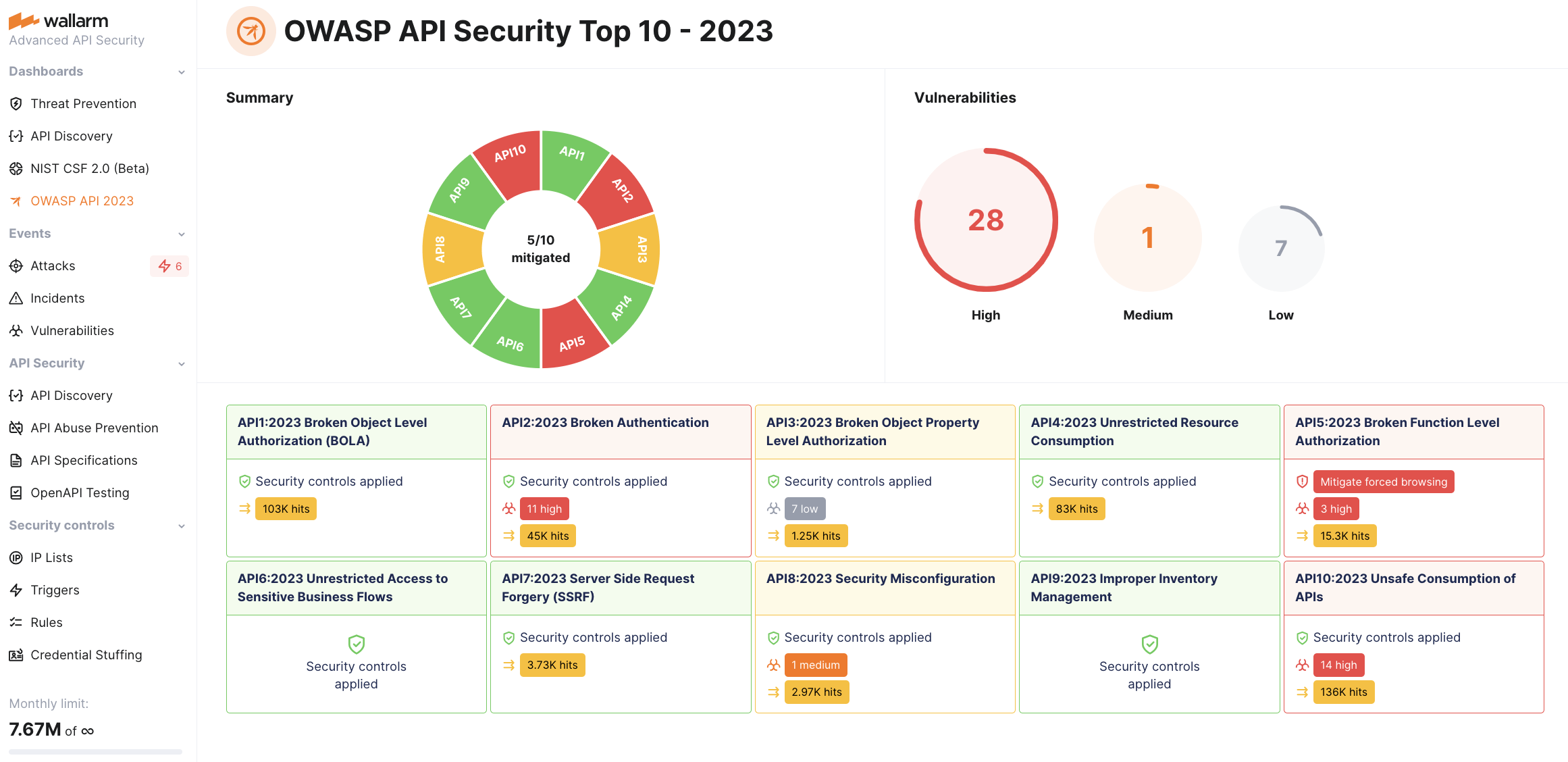

The OWASP API Security Top 10 dashboard provides detailed visibility into your system's security posture against the OWASP API Top 10 threats, including attack information.

Notifications¶

Wallarm can send you notifications on detected attacks, hits and malicious payloads. It allows you to be aware of attempts to attack your system and analyze detected malicious traffic promptly. Analyzing malicious traffic includes reporting false positives, allowlisting IPs originating legitimate requests and denylisting IPs of attack sources.

To configure notifications:

1. Configure native integrations with the systems to send notifications (e.g. PagerDuty, Opsgenie, Splunk, Slack, Telegram).

2. Set the conditions for sending notifications:

   • To get notifications on each detected hit, select the appropriate option in the integration settings.

     See the example of the notification about detected hit in the JSON format

     [
         {
             "summary": "[Wallarm] New hit detected",
             "details": {
             "client_name": "TestCompany",
             "cloud": "EU",
             "notification_type": "new_hits",
             "hit": {
                 "domain": "www.example.com",
                 "heur_distance": 0.01111,
                 "method": "POST",
                 "parameter": "SOME_value",
                 "path": "/news/some_path",
                 "payloads": [
                     "say ni"
                 ],
                 "point": [
                     "post"
                 ],
                 "probability": 0.01,
                 "remote_country": "PL",
                 "remote_port": 0,
                 "remote_addr4": "8.8.8.8",
                 "remote_addr6": "",
                 "tor": "none",
                 "request_time": 1603834606,
                 "create_time": 1603834608,
                 "response_len": 14,
                 "response_status": 200,
                 "response_time": 5,
                 "stamps": [
                     1111
                 ],
                 "regex": [],
                 "stamps_hash": -22222,
                 "regex_hash": -33333,
                 "type": "sqli",
                 "block_status": "monitored",
                 "id": [
                     "hits_production_999_202010_v_1",
                     "c2dd33831a13be0d_AC9"
                 ],
                 "object_type": "hit",
                 "anomaly": 0
                 }
             }
         }
     ]


   • To set the threshold of attack, hit or malicious payload number and get notifications when the threshold is exceeded, configure appropriate triggers.

API calls¶

To get the attack details, you can call the Wallarm API directly besides using the Wallarm Console UI. The Attacks section is backed by the Attacks API, which lets you run the same aggregation queries, drill into groups, compute widgets, mark verdicts, export results, and manage saved views from your own client.
