API Discoveryで検出されたエンドポイントの自動BOLA保護

この記事では、API Discovery(APID)で検出されたエンドポイント向けの自動BOLA保護について説明します。

その他のBOLA保護手段

代替として、または併用して、トリガーによるBOLA保護を構成できます。

Overview

Behavioral attacks such as Broken Object Level Authorization (BOLA) exploit the vulnerability of the same name. This vulnerability allows an attacker to access an object by its identifier via an API request and either read or modify its data bypassing an authorization mechanism. This article instructs you on protecting your applications against BOLA attacks.

By default, Wallarm automatically discovers only vulnerabilities of the BOLA type (also known as IDOR) but does not detect its exploitation attempts.

BOLA protection restrictions

Only Wallarm node 4.2 and above supports BOLA attack detection.

Wallarm node 4.2 and above analyzes only the following requests for BOLA attack signs:

Requirements

To protect resources from BOLA attacks, make sure your environment meets the following requirements:

  • If the filtering node is deployed behind a proxy server or load balancer, configure displaying real clients' IP addresses.

保護ロジック

Once BOLA protection is enabled, Wallarm:

  1. Identifies API endpoints that are most likely to be the target of BOLA attacks, e.g. those with variability in path parameters: domain.com/path1/path2/path3/{variative_path4}.

    This stage takes a period of time

    Identification of vulnerable API endpoints takes a period of time required for deep observation of discovered API inventory and incoming traffic trends.

    Only API endpoints explored by the API Discovery module are protected against BOLA attacks in the automated way. Protected endpoints are highlighted with the corresponding icon.

  2. Protects vulnerable API endpoints against BOLA attacks. The default protection logic is the following:

    • Requests to a vulnerable endpoint exceeding the 180 requests threshold from the same IP per minute are considered BOLA attacks.
    • Only register BOLA attacks in the event list when the threshold of requests from the same IP is reached. Wallarm does not block BOLA attacks. Requests will keep going to your applications.

      The corresponding reaction in the autoprotection template is Only register attacks.

  3. Reacts to changes in API by protecting new vulnerable endpoints and disabling protection for removed endpoints.

設定

API Discoveryが必要

自動BOLA保護は、API Discoveryモジュールを使用している場合に利用できます。

自動保護を有効化するには、Wallarm Console → BOLA protectionに移動し、スイッチを有効に切り替えます。

BOLAトリガー

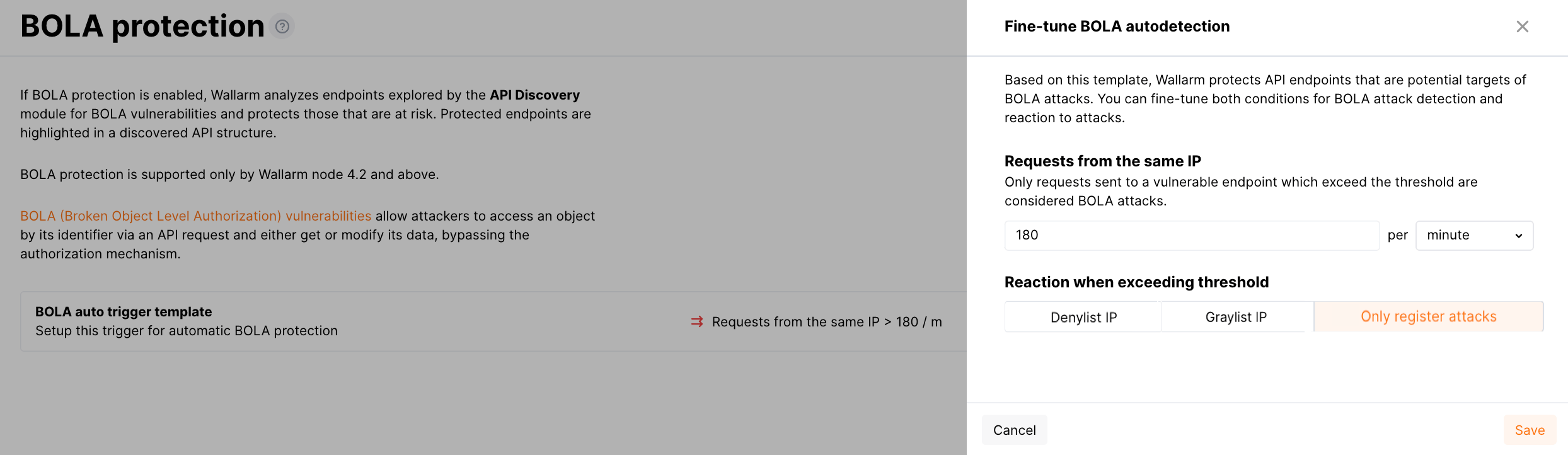

その後、次のようにBOLA自動検出テンプレートを編集して、Wallarmのデフォルト動作を微調整できます。

  • 同一IPからのリクエストがBOLA攻撃として判定されるしきい値を変更します。

  • しきい値超過時のリアクションを変更します。

    • Denylist IP - WallarmはBOLA攻撃元のIPをdenylistに追加し、これらのIPが生成する全トラフィックをブロックします。
    • Graylist IP - WallarmはBOLA攻撃元のIPをgraylistに追加し、フィルタリングノードがsafe blockingモードの場合に限り、これらのIPからの悪意のあるリクエストのみをブロックします。

BOLAトリガー

無効化

自動BOLA保護を無効化するには、BOLA protectionセクションでスイッチを無効に切り替えます。

API Discoveryのサブスクリプションが期限切れになると、自動BOLA保護は自動的に無効になります。
