Host Redirection in Security Edge Inline

Wallarm Security Edge Inline provides a host redirection feature to help you unify traffic entry points.

How it works

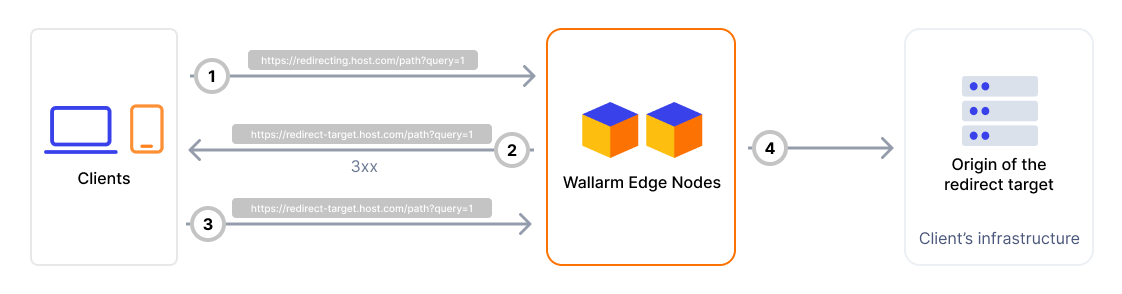

When host redirection is enabled, the Edge Node automatically redirects client requests from one host (the redirecting host) to another (the target host).

The redirected request is then processed according to the configuration - including origin, filtration mode, and other settings - of the target host.

TLS requirement

The DNS zone of the redirecting host must have certificate issuance enabled.

!

The Edge Node responds to incoming requests on the redirecting host with an HTTP 301 or 302 redirect, instructing the client to request the same resource on the target host.

The original path and query string are preserved while redirecting requests.

Enabling host redirection

To enable host redirection:

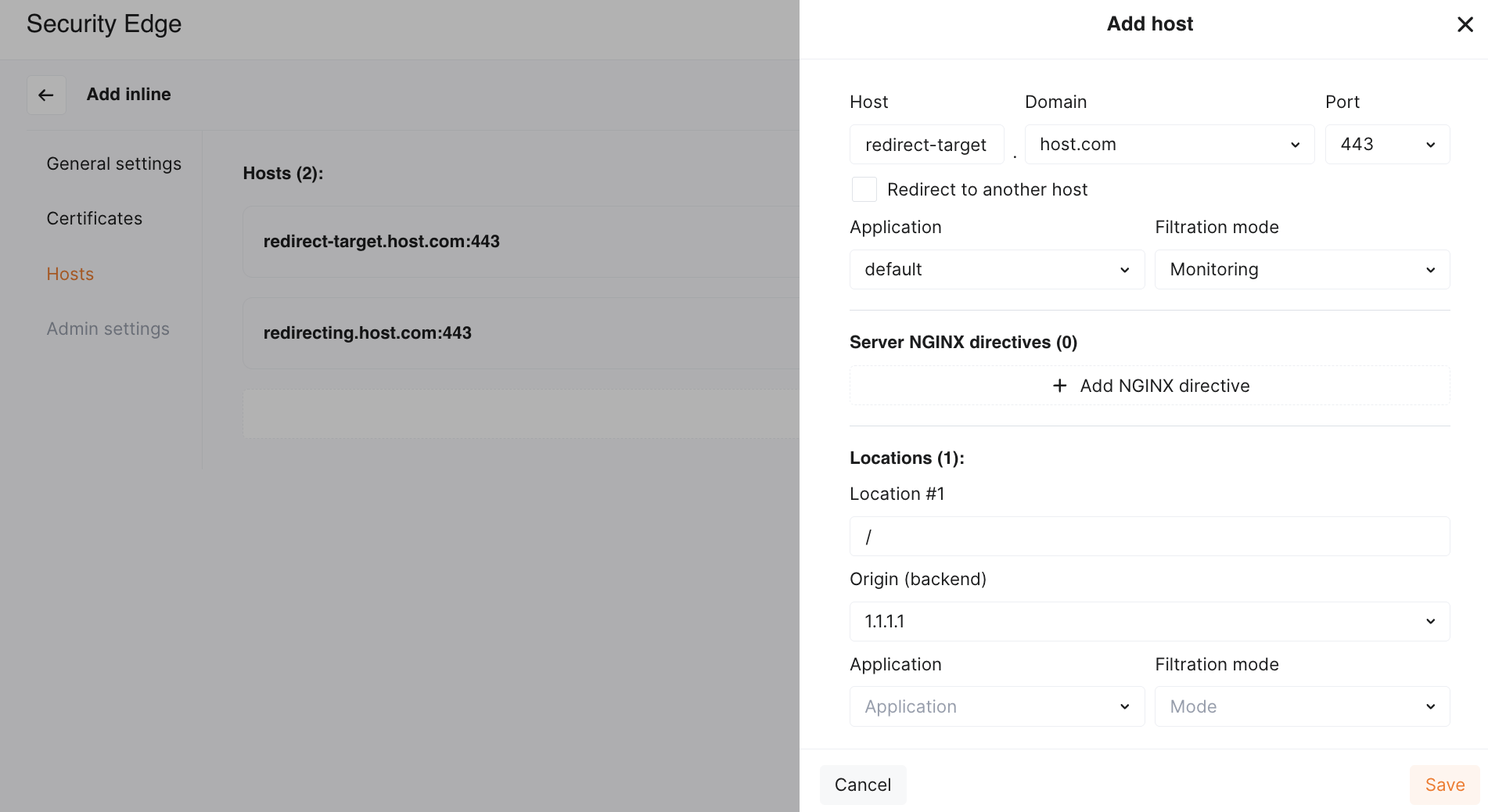

  1. Add the target host - the host to which client requests will be redirected.

  2. Fully configure it with the required origin, filtration mode, and other necessary settings.

    !

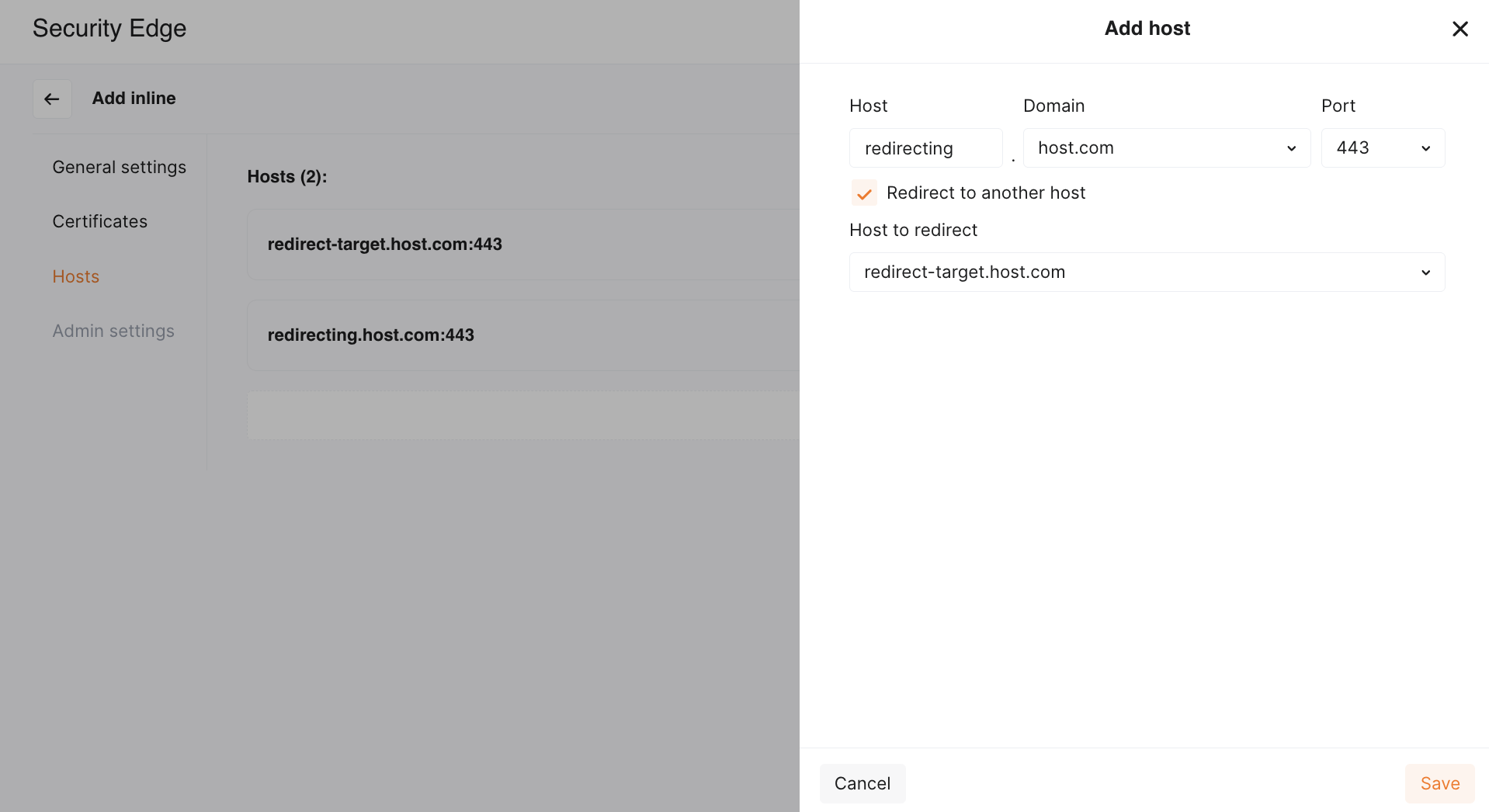

  3. Add the redirecting host - the host from which users will be redirected.

  4. Enable the Redirect to another host checkbox and select the target host from the list.

    !

No origin is required for the redirecting host - it only returns an HTTPS redirect and does not proxy traffic.

Examples

Below are some common use cases where host redirection is useful.

  • Redirecting host: example.com

  • Protected host: www.example.com

To securely handle traffic to your apex domain, we recommend using a subdomain like www.example.com as the primary protected host whenever possible.

This approach allows Wallarm to manage traffic routing across multiple regions and cloud providers using a global CNAME, eliminating the need for multiple A records and manual traffic distribution.

Configuration steps:

  1. Add the host www.example.com to Security Edge and configure it fully (origin, mode, etc.).

  2. Add the host example.com as a separate host and enable redirection to www.example.com.

Legacy API endpoint redirect

  • Old host: old-api.customer.com

  • New protected host: new-api.customer.com

If your API was previously available at old-api.customer.com but has moved to new-api.customer.com, use host redirection to ensure backward compatibility.

Configuration steps:

  1. Add the host new-api.customer.com to Security Edge and configure it fully (origin, mode, etc.).

  2. Add the host old-api.customer.com as a separate host and enable redirection to new-api.customer.com.
