Wallarm Connector for Kong Ingress Controller¶

To secure APIs managed by Kong Ingress Controller, Wallarm provides a connector that integrates seamlessly into your Kubernetes environment. By deploying the Wallarm filtering node and connecting it to Kong via a custom Lua plugin, incoming traffic is analyzed in real-time, allowing Wallarm to mitigate malicious requests before they reach your services.

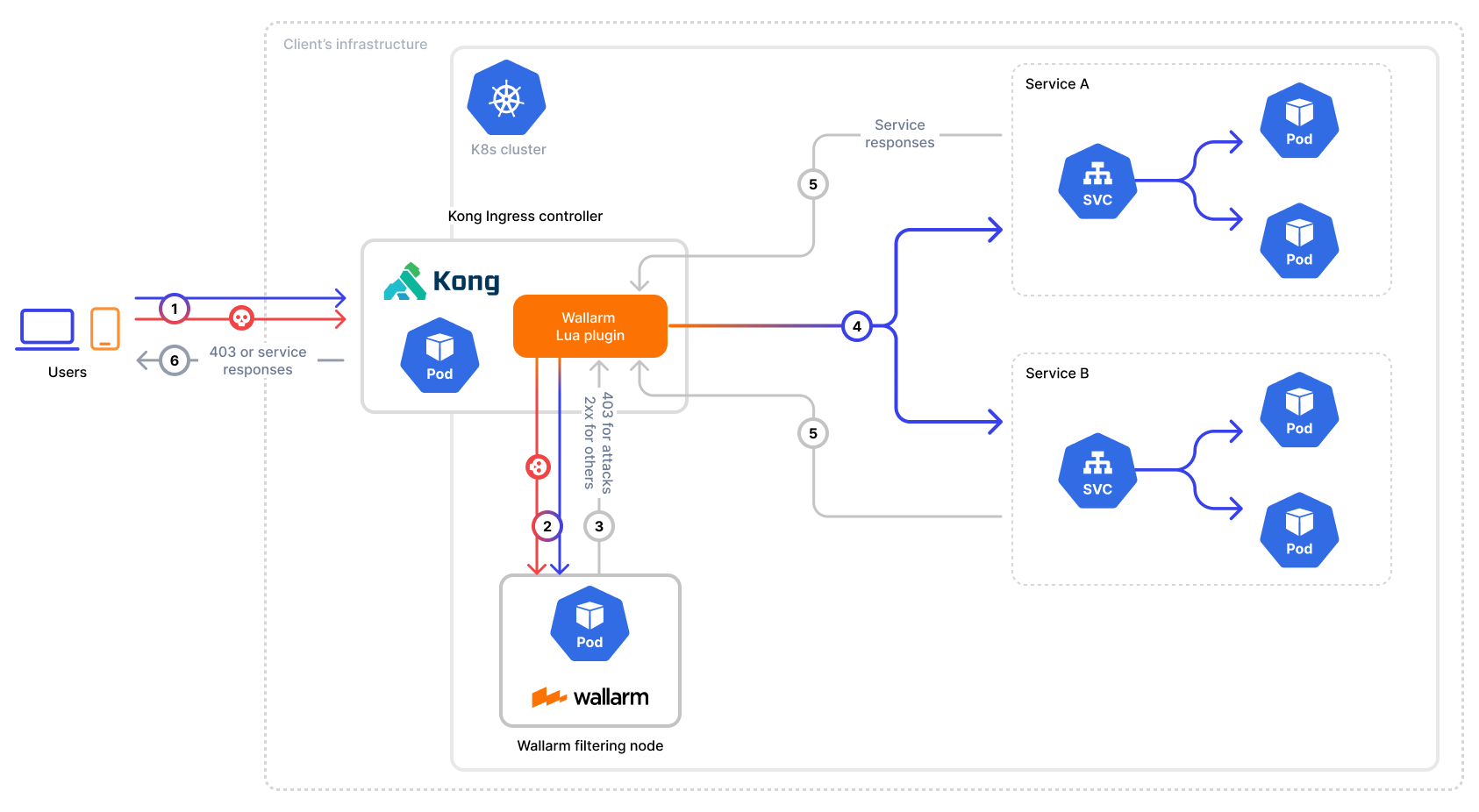

The Wallarm connector for Kong Ingress Controller supports only in-line mode:

Use cases¶

Among all supported Wallarm deployment options, this solution is the recommended one for securing APIs managed by the Kong Ingress Controller running the Kong API Gateway.

Limitations¶

This setup allows fine-tuning Wallarm only via the Wallarm Console UI. Some Wallarm features that require file-based configuration are not supported in this implementation, such as:

Multitenancy feature
Application configuration
Custom blocking page and code setup
Local control of Wallarm's filtration mode is not supported, and it defaults to blocking. You can change this mode via the Wallarm Console UI.

Requirements¶

To proceed with the deployment, ensure that you meet the following requirements:

Kong Ingress Controller deployed and managing your API traffic in Kubernetes cluster
Helm v3 package manager
Access to https://us1.api.wallarm.com (US Wallarm Cloud) or to https://api.wallarm.com (EU Wallarm Cloud)
Access to https://charts.wallarm.com to add the Wallarm Helm chart
Access to the Wallarm repositories on Docker Hub https://hub.docker.com/r/wallarm
Access to the IP addresses below for downloading updates to attack detection rules, as well as retrieving precise IPs for your allowlisted, denylisted, or graylisted countries, regions, or data centers
US CloudEU Cloud
34.96.64.17 34.110.183.149 35.235.66.155
34.160.38.183 34.144.227.90 34.90.110.226
Administrator access to Wallarm Console for US Cloud or EU Cloud

Deployment¶

To secure APIs managed by Kong Ingress Controller, follow these steps:

Deploy the Wallarm filtering node service in your Kubernetes cluster.
Obtain and deploy the Wallarm Lua plugin to route incoming traffic from the Kong Ingress Controller to the Wallarm filtering node for analysis.

Step 1: Deploy a Wallarm node¶

Deploy the Wallarm node as a separate service in your Kubernetes cluster using Helm.

The node operates in blocking mode by default, meaning malicious requests will be blocked, and a 403 response will be returned. You can change this mode in the Wallarm Console UI.

Generate an API token to connect the Wallarm node to the Wallarm Cloud:
1. Open Wallarm Console → Settings → API tokens in the US Cloud or EU Cloud.
2. Find or create API token with the Deploy source role.
3. Copy this token.

Add the Wallarm chart repository:

helm repo add wallarm https://charts.wallarm.com
helm repo update wallarm

Deploy the Wallarm filtering node service:

US CloudEU Cloud

helm upgrade --install --version 0.5.3 <WALLARM_RELEASE_NAME> wallarm/wallarm-node-next -n wallarm-node --create-namespace --set config.api.token=<WALLARM_API_TOKEN> --set config.api.host=us1.api.wallarm.com --set config.connector.http_inspector.real_ip_header=X-Real-IP

helm upgrade --install --version 0.5.3 <WALLARM_RELEASE_NAME> wallarm/wallarm-node-next -n wallarm-node --create-namespace --set config.api.token=<WALLARM_API_TOKEN> --set config.api.host=api.wallarm.com --set config.connector.http_inspector.real_ip_header=X-Real-IP

config.connector.http_inspector.real_ip_header specifies the header to extract the client's real IP address when traffic passes through proxies or load balancers.

Step 2: Obtain and deploy the Wallarm Lua plugin¶

Contact support@wallarm.com to obtain the Wallarm Lua plugin code for your Kong Ingress Controller.
Create a ConfigMap with the plugin code:
```
kubectl apply -f wallarm-kong-lua.yaml -n <KONG_NS>
```
<KONG_NS> is the namespace where your Kong Ingress Controller is deployed.

Update your values.yaml file for Kong Ingress Controller to load the Wallarm Lua plugin:

gateway:
  plugins:
    configMaps:
    - name: kong-lua
      pluginName: kong-lua

Update Kong Ingress Controller:

helm upgrade --install <KONG_RELEASE_NAME> kong/ingress -n <KONG_NS> --values values.yaml

Activate the Wallarm Lua plugin by creating a KongClusterPlugin resource and specifying the Wallarm node service address:

echo '
apiVersion: configuration.konghq.com/v1
kind: KongClusterPlugin
metadata:
  name: kong-lua
  annotations:
    kubernetes.io/ingress.class: kong
config:
  wallarm_node_address: "http://next-processing.wallarm-node.svc.cluster.local:5000"
plugin: kong-lua
' | kubectl apply -f -

wallarm-node is the namespace where the Wallarm node service is deployed.

Add the following annotations to your Ingress or Gateway API route to enable the plugin for selected services:
```
konghq.com/plugins: kong-lua
kubernetes.io/ingress.class: kong
```

Testing¶

To test the functionality of the deployed connector, follow these steps:

Verify that the Wallarm pods are up and running:

kubectl -n wallarm-node get pods

wallarm-node is the namespace where the Wallarm node service is deployed.

Each pod status should be STATUS: Running or READY: N/N. For example:

NAME                                READY   STATUS    RESTARTS   AGE
next-aggregation-5fb5d5444b-6c8n8   3/3     Running   0          51m
next-processing-7c487bbdc6-4j6mz    3/3     Running   0          51m

Retrieve the Kong Gateway IP (which is usually configured as a LoadBalancer service):

export PROXY_IP=$(kubectl get svc --namespace <KONG_NS> <KONG_RELEASE_NAME>-gateway-proxy -o jsonpath='{.status.loadBalancer.ingress[0].ip}')

Send the request with the test Path Traversal attack to the balancer:
```
curl -H "Host: kong-lua-test.wallarm" $PROXY_IP/etc/passwd
```
The expected response is the following since the node operates in blocking mode by default:
```
{"error": {"code": 403, "message": "request blocked"}}
```
Open Wallarm Console → Attacks section in the US Cloud or EU Cloud and make sure the attack is displayed in the list.

You can change the filtration mode via the Wallarm Console UI if needed.
