Wallarm Filter for Istio Ingress¶

This guide describes how to secure your APIs managed by Istio using the Wallarm Connector for Istio Ingress.

To use Wallarm with Istio, you need to deploy a Wallarm Node (either externally or within your cluster) and apply a gRPC-based External Processing filter (ext_proc) in Envoy to forward traffic to the Node for analysis.

The Wallarm connector for Instio ingress supports both synchronous (in-line) and asynchronous (out‑of‑band) traffic analysis:

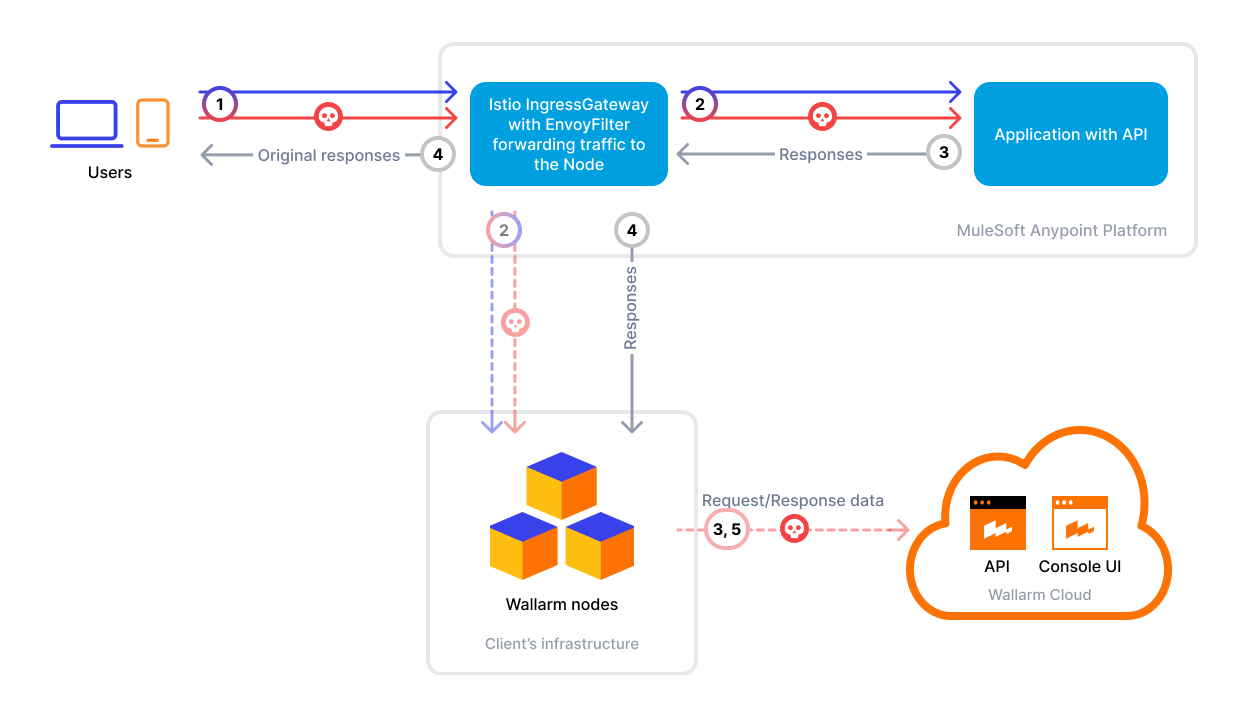

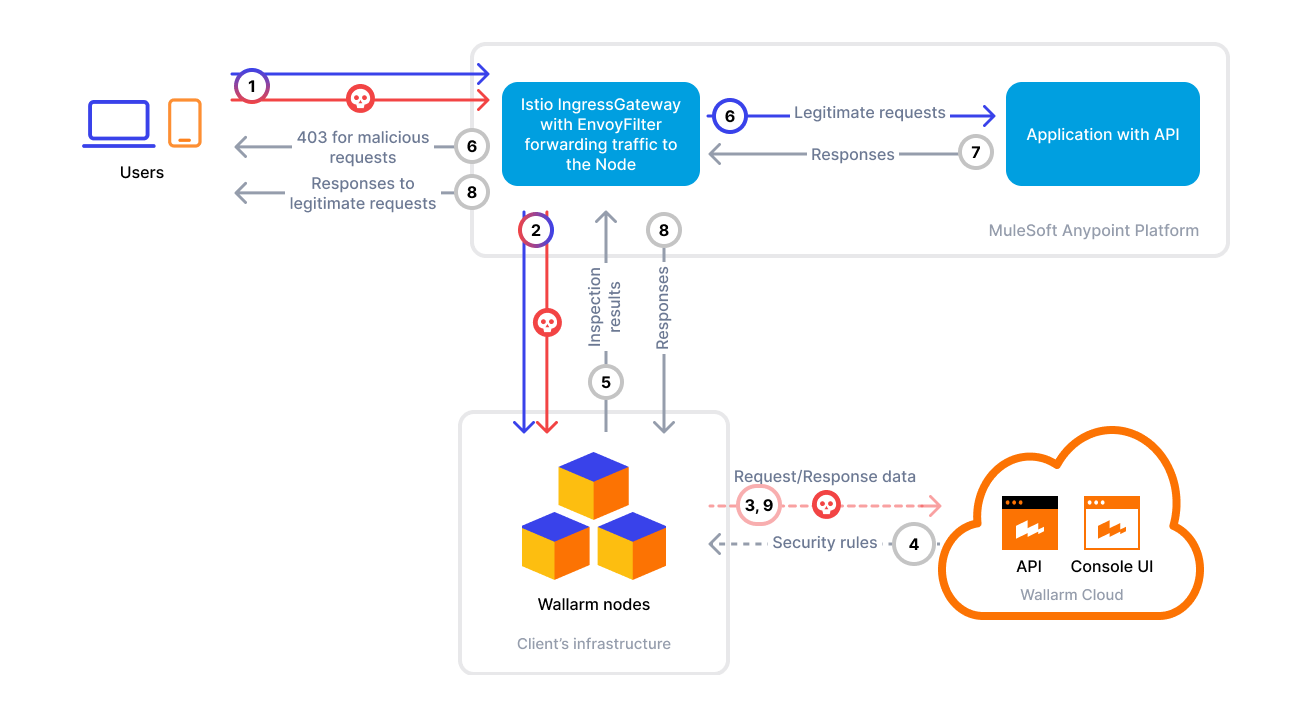

Synchronous traffic flowAsynchronous traffic flow

Use cases¶

This connector is the optimal choice when you need protection for workloads managed by Istio and Envoy.

Limitations¶

A trusted SSL/TLS certificate is required for the Wallarm Node domain. Self-signed certificates are not supported.
Custom blocking page and blocking code configurations are not yet supported.

All blocked malicious traffic is returned with status code 403 and the default block page.
Rate limiting by Wallarm rules is not supported.

Rate limiting cannot be enforced on the Wallarm side for this connector. If you need rate limiting, use the features built into your API gateway or cloud platform.

Requirements¶

Before deploying the connector, make sure that:

You have a Kubernetes cluster with Istio installed
Envoy v1.30.0+ is used
Applications are deployed and reachable through an Istio Gateway and VirtualService
Access to the Administrator account in Wallarm Console for the US Cloud or EU Cloud
A Wallarm Native Node v0.13.0+ is used
A trusted TLS certificate and private key are available for the domain used by the Node

Deployment¶

1. Deploy a Wallarm Node¶

The Wallarm node is a core component of the Wallarm platform that you need to deploy. It inspects incoming traffic, detects malicious activities, and can be configured to mitigate threats.

Choose an artifact for a self-hosted node deployment and follow the instructions attached for the envoy-external-filter mode:

All-in-one installer for Linux infrastructures on bare metal or VMs
Docker image for environments that use containerized deployments
Helm chart for infrastructures utilizing Kubernetes

2. Configure Istio (Envoy) to forward traffic to the Wallarm Node¶

Add the Wallarm filter to your Istio IngressGateway using the External Processing (ext_proc) filter.

You can either create a new EnvoyFilter in the istio-system namespace (recommended) or modify your existing one.

If you already have a gateway EnvoyFilter, merge the HTTP_FILTER and CLUSTER patches into it.

If your Wallarm Node is publicly reachable¶

Synchronous (inline) analysisAsynchronous (out-of-band) analysis

apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
  name: wallarm-filter
  namespace: istio-system
spec:
  configPatches:
    - applyTo: HTTP_FILTER
      match:
        context: GATEWAY
        listener:
          filterChain:
            filter:
              name: "envoy.filters.network.http_connection_manager"
      patch:
        operation: INSERT_BEFORE
        value:
          name: envoy.filters.http.ext_proc
          typed_config:
            "@type": type.googleapis.com/envoy.extensions.filters.http.ext_proc.v3.ExternalProcessor
            grpc_service:
              envoy_grpc:
                cluster_name: wallarm_cluster
            processing_mode:
              request_body_mode: STREAMED
              response_body_mode: STREAMED
            request_attributes: ["request.id", "request.time", "source.address"]
            failure_mode_allow: <TRUE/FALSE>
    - applyTo: CLUSTER
      match:
        context: GATEWAY
      patch:
        operation: ADD
        value:
          name: wallarm_cluster
          connect_timeout: 30s
          type: STRICT_DNS
          load_assignment:
            cluster_name: wallarm_cluster
            endpoints:
            - lb_endpoints:
              - endpoint:
                  address:
                    socket_address:
                      address: <WALLARM_NODE_FQDN>
                      port_value: 5080
          http2_protocol_options: {}
          transport_socket:
            name: envoy.transport_sockets.tls
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.transport_sockets.tls.v3.UpstreamTlsContext
              common_tls_context:
                validation_context:
                  match_subject_alt_names:
                    - exact: <WALLARM_NODE_FQDN>
                  trusted_ca:
                    filename: /etc/ssl/certs/ca-certificates.crt

apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
  name: wallarm-filter
  namespace: istio-system
spec:
  configPatches:
    - applyTo: HTTP_FILTER
      match:
        context: GATEWAY
        listener:
          filterChain:
            filter:
              name: "envoy.filters.network.http_connection_manager"
      patch:
        operation: INSERT_BEFORE
        value:
          name: envoy.filters.http.ext_proc
          typed_config:
            "@type": type.googleapis.com/envoy.extensions.filters.http.ext_proc.v3.ExternalProcessor
            grpc_service:
              envoy_grpc:
                cluster_name: wallarm_cluster
            processing_mode:
              request_body_mode: STREAMED
              response_body_mode: STREAMED
            request_attributes: ["request.id", "request.time", "source.address"]
            failure_mode_allow: <TRUE/FALSE>
            observability_mode: true
    - applyTo: CLUSTER
      match:
        context: GATEWAY
      patch:
        operation: ADD
        value:
          name: wallarm_cluster
          connect_timeout: 30s
          type: STRICT_DNS
          load_assignment:
            cluster_name: wallarm_cluster
            endpoints:
            - lb_endpoints:
              - endpoint:
                  address:
                    socket_address:
                      address: <WALLARM_NODE_FQDN>
                      port_value: 5080
          http2_protocol_options: {}
          transport_socket:
            name: envoy.transport_sockets.tls
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.transport_sockets.tls.v3.UpstreamTlsContext
              common_tls_context:
                validation_context:
                  match_subject_alt_names:
                    - exact: <WALLARM_NODE_FQDN>
                  trusted_ca:
                    filename: /etc/ssl/certs/ca-certificates.crt

request_body_mode: STREAMED and response_body_mode: STREAMED — may cause Envoy to use chunked transfer encoding for the backend. Ensure that your backend supports chunked decoding; otherwise, requests may fail.

Use BUFFERED or BUFFERED_PARTIAL, or ensure backend compatibility with chunked encoding if needed.
failure_mode_allow — defines the behavior if the Wallarm Node is unreachable:
- true: fail-open (traffic continues without analysis)
- false: fail-closed (traffic rejected with 500)
<WALLARM_NODE_FQDN> — your Wallarm Node FQDN, without protocol or trailing slash.
port_value: 5080 — change if the Wallarm Node listens on another port.
The connect_timeout parameter defines how long Envoy waits to establish a connection with the Wallarm Node before considering it failed.

The example value of 30s works for most environments. However, under heavy load or network congestion, a long timeout may delay fail-open behavior and cause traffic to stall. In such cases, consider reducing the timeout — for example, to 10s (the Istio default for TCP connections).

Apply the configuration:

kubectl apply -f <ENVOYFILTER_FILE_NAME>.yaml

If your Wallarm Node is internal (`ClusterIP`)¶

Synchronous (inline) analysisAsynchronous (out-of-band) analysis

apiVersion: v1
items:
- apiVersion: networking.istio.io/v1alpha3
  kind: EnvoyFilter
  metadata:
    annotations:
      kubectl.kubernetes.io/last-applied-configuration: |
        {"apiVersion":"networking.istio.io/v1alpha3","kind":"EnvoyFilter","metadata":{"annotations":{},"name":"wallarm-filter","namespace":"istio-system"},"spec":{"configPatches":[{"applyTo":"HTTP_FILTER","match":{"context":"GATEWAY","listener":{"filterChain":{"filter":{"name":"envoy.filters.network.http_connection_manager"}}}},"patch":{"operation":"INSERT_BEFORE","value":{"name":"envoy.filters.http.ext_proc","typed_config":{"@type":"type.googleapis.com/envoy.extensions.filters.http.ext_proc.v3.ExternalProcessor","failure_mode_allow":false,"grpc_service":{"envoy_grpc":{"cluster_name":"wallarm_cluster"}},"processing_mode":{"request_body_mode":"STREAMED","response_body_mode":"STREAMED"},"request_attributes":["request.id","request.time","source.address"]}}}},{"applyTo":"CLUSTER","match":{"context":"GATEWAY"},"patch":{"operation":"ADD","value":{"connect_timeout":"30s","load_assignment":{"cluster_name":"wallarm_cluster","endpoints":[{"lb_endpoints":[{"endpoint":{"address":{"socket_address":{"address":"native-processing.wallarm.svc.cluster.local","port_value":5080}}}}]}]},"name":"wallarm_cluster","type":"STRICT_DNS"}}}]}}
    creationTimestamp: "2025-06-04T01:41:30Z"
    generation: 5
    name: wallarm-filter
    namespace: istio-system
    resourceVersion: "49980160"
    uid: db2ec99d-2a65-4694-8773-0be30f3060f2
  spec:
    configPatches:
    - applyTo: HTTP_FILTER
      match:
        context: GATEWAY
        listener:
          filterChain:
            filter:
              name: envoy.filters.network.http_connection_manager
      patch:
        operation: INSERT_BEFORE
        value:
          name: envoy.filters.http.ext_proc
          typed_config:
            '@type': type.googleapis.com/envoy.extensions.filters.http.ext_proc.v3.ExternalProcessor
            failure_mode_allow: <TRUE/FALSE>
            grpc_service:
              envoy_grpc:
                cluster_name: wallarm_cluster
            processing_mode:
              request_body_mode: STREAMED
              response_body_mode: STREAMED
            request_attributes:
            - request.id
            - request.time
            - source.address
    - applyTo: CLUSTER
      match:
        context: GATEWAY
      patch:
        operation: ADD
        value:
          connect_timeout: 30s
          http2_protocol_options: {}
          load_assignment:
            cluster_name: wallarm_cluster
            endpoints:
            - lb_endpoints:
              - endpoint:
                  address:
                    socket_address:
                      address: <HOST.DOMAIN.COM>
                      port_value: 5080
          name: wallarm_cluster
          transport_socket:
            name: envoy.transport_sockets.tls
            typed_config:
              '@type': type.googleapis.com/envoy.extensions.transport_sockets.tls.v3.UpstreamTlsContext
              common_tls_context:
                validation_context:
                  match_subject_alt_names:
                  - exact: <HOST.DOMAIN.COM>
                  trusted_ca:
                    filename: /etc/ssl/certs/ca-certificates.crt
          type: STRICT_DNS

apiVersion: v1
items:
- apiVersion: networking.istio.io/v1alpha3
  kind: EnvoyFilter
  metadata:
    annotations:
      kubectl.kubernetes.io/last-applied-configuration: |
        {"apiVersion":"networking.istio.io/v1alpha3","kind":"EnvoyFilter","metadata":{"annotations":{},"name":"wallarm-filter","namespace":"istio-system"},"spec":{"configPatches":[{"applyTo":"HTTP_FILTER","match":{"context":"GATEWAY","listener":{"filterChain":{"filter":{"name":"envoy.filters.network.http_connection_manager"}}}},"patch":{"operation":"INSERT_BEFORE","value":{"name":"envoy.filters.http.ext_proc","typed_config":{"@type":"type.googleapis.com/envoy.extensions.filters.http.ext_proc.v3.ExternalProcessor","failure_mode_allow":false,"grpc_service":{"envoy_grpc":{"cluster_name":"wallarm_cluster"}},"processing_mode":{"request_body_mode":"STREAMED","response_body_mode":"STREAMED"},"request_attributes":["request.id","request.time","source.address"]}}}},{"applyTo":"CLUSTER","match":{"context":"GATEWAY"},"patch":{"operation":"ADD","value":{"connect_timeout":"30s","load_assignment":{"cluster_name":"wallarm_cluster","endpoints":[{"lb_endpoints":[{"endpoint":{"address":{"socket_address":{"address":"native-processing.wallarm.svc.cluster.local","port_value":5080}}}}]}]},"name":"wallarm_cluster","type":"STRICT_DNS"}}}]}}
    creationTimestamp: "2025-06-04T01:41:30Z"
    generation: 5
    name: wallarm-filter
    namespace: istio-system
    resourceVersion: "49980160"
    uid: db2ec99d-2a65-4694-8773-0be30f3060f2
  spec:
    configPatches:
    - applyTo: HTTP_FILTER
      match:
        context: GATEWAY
        listener:
          filterChain:
            filter:
              name: envoy.filters.network.http_connection_manager
      patch:
        operation: INSERT_BEFORE
        value:
          name: envoy.filters.http.ext_proc
          typed_config:
            '@type': type.googleapis.com/envoy.extensions.filters.http.ext_proc.v3.ExternalProcessor
            failure_mode_allow: <TRUE/FALSE>
            observability_mode: true
            grpc_service:
              envoy_grpc:
                cluster_name: wallarm_cluster
            processing_mode:
              request_body_mode: STREAMED
              response_body_mode: STREAMED
            request_attributes:
            - request.id
            - request.time
            - source.address
    - applyTo: CLUSTER
      match:
        context: GATEWAY
      patch:
        operation: ADD
        value:
          connect_timeout: 30s
          http2_protocol_options: {}
          load_assignment:
            cluster_name: wallarm_cluster
            endpoints:
            - lb_endpoints:
              - endpoint:
                  address:
                    socket_address:
                      address: <HOST.DOMAIN.COM>
                      port_value: 5080
          name: wallarm_cluster
          transport_socket:
            name: envoy.transport_sockets.tls
            typed_config:
              '@type': type.googleapis.com/envoy.extensions.transport_sockets.tls.v3.UpstreamTlsContext
              common_tls_context:
                validation_context:
                  match_subject_alt_names:
                  - exact: <HOST.DOMAIN.COM>
                  trusted_ca:
                    filename: /etc/ssl/certs/ca-certificates.crt
          type: STRICT_DNS

failure_mode_allow — defines the behavior if the Wallarm Node is unreachable:
- true: fail-open (traffic continues without analysis)
- false: fail-closed (traffic rejected with 500)
request_body_mode: STREAMED and response_body_mode: STREAMED — may cause Envoy to use chunked transfer encoding for the backend. Ensure that your backend supports chunked decoding; otherwise, requests may fail.

Use BUFFERED or BUFFERED_PARTIAL, or ensure backend compatibility with chunked encoding if needed.
<HOST.DOMAIN.COM> — the fully qualified domain name (FQDN) of your Wallarm Node, without protocol or trailing slash.

This must be the same domain for which the SSL/TLS certificate was issued and which resolves internally to the Node’s service (e.g., through a CoreDNS rewrite).
port_value: 5080 — change if the Wallarm Node listens on another port.
The connect_timeout parameter defines how long Envoy waits to establish a connection with the Wallarm Node before considering it failed.

The example value of 30s works for most environments. However, under heavy load or network congestion, a long timeout may delay fail-open behavior and cause traffic to stall. In such cases, consider reducing the timeout — for example, to 10s (the Istio default for TCP connections).

Apply the configuration:

kubectl apply -f <ENVOYFILTER_FILE_NAME>.yaml

3. Optional: AWS kOps proxy protocol support¶

For AWS kOps clusters, enable proper X-Forwarded-For propagation:

kubectl patch svc istio-ingressgateway -n istio-system \
  --type=merge \
  -p '{"metadata":{"annotations":{"service.beta.kubernetes.io/aws-load-balancer-proxy-protocol":"*"}}}'

kubectl edit configmap -n istio-system istio

Then add:

data:
  mesh: |-
    defaultConfig:
      gatewayTopology:
        proxyProtocol: {}

Testing¶

To test the functionality of the deployed filter, follow these steps:

Send the request with the test Path Traversal attack:
```
curl https://<YOUR_APP_DOMAIN>/etc/passwd
```
Open Wallarm Console → Attacks section in the US Cloud or EU Cloud and make sure the attack is displayed in the list.

If the Wallarm node mode is set to blocking and the traffic flows in-line, the request will also be blocked.

Advanced configuration options¶

In addition to the basic EnvoyFilter examples described above (which apply Wallarm filtering to all Istio Ingress Gateway traffic), you can use the following alternative configurations to handle more specific use cases:

Limit Wallarm inspection to selected domains or namespaces
Mirror intra-cluster traffic in addition to external ingress traffic
Exclude certain routes or services from inspection

Filter only selected domains (external traffic only)¶

If you prefer to manage a single EnvoyFilter in the istio-system namespace and prevent other namespaces from disabling inspection, use this configuration.

It mirrors only specific domains defined by their SNI values:

apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
  annotations:
  name: wallarm-filter
  namespace: istio-system
spec:
  configPatches:
######
## COPY AND PASTE THIS SECTION FOR EVERY DOMAIN YOU WANT TO INSPECT
## MODIFY ONLY THE match.listener.filterChain.sni VALUE
######
  - applyTo: HTTP_FILTER
    match:
      context: GATEWAY
      listener:
        filterChain:
          sni: <APP_DOMAIN>
          filter:
            name: envoy.filters.network.http_connection_manager
    patch:
      operation: INSERT_BEFORE
      value:
        name: envoy.filters.http.ext_proc
        typed_config:
          '@type': type.googleapis.com/envoy.extensions.filters.http.ext_proc.v3.ExternalProcessor
          failure_mode_allow: false
          grpc_service:
            envoy_grpc:
              cluster_name: wallarm_cluster
          processing_mode:
            request_body_mode: STREAMED
            response_body_mode: STREAMED
          request_attributes:
          - request.id
          - request.time
          - source.address
########
## END COPY/PASTE SECTION
########

########
## PASTE ANY OTHER DOMAINS TO INSPECT HERE BEFORE THE CLUSTER CONFIG
########

  - applyTo: CLUSTER
    match:
      context: GATEWAY
    patch:
      operation: ADD
      value:
        connect_timeout: 30s
        http2_protocol_options: {}
        load_assignment:
          cluster_name: wallarm_cluster
          endpoints:
          - lb_endpoints:
            - endpoint:
                address:
                  socket_address:
                    address: <WALLARM_NODE_FQDN>
                    port_value: <PORT>
        name: wallarm_cluster
        transport_socket:
          name: envoy.transport_sockets.tls
          typed_config:
            '@type': type.googleapis.com/envoy.extensions.transport_sockets.tls.v3.UpstreamTlsContext
            common_tls_context:
              validation_context:
                match_subject_alt_names:
                - exact: <WALLARM_NODE_FQDN>
                trusted_ca:
                  filename: /etc/ssl/certs/ca-certificates.crt
        type: STRICT_DNS

Filter selected domains (intra-cluster + external traffic)¶

You can also deploy an EnvoyFilter inside each application namespace to inspect not only ingress but also service-to-service (sidecar) traffic.

This setup supports Istio's internal mTLS and client-side mTLS:

# NOTE THE spec.configPatches.applyTo.match.context ARE FOR SIDECAR NOT GATEWAY
# IF YOU ALSO WANT TO INSPECT OUTBOUND REQUESTS THE APP MAKES, ADD ANOTHER
# "- applyTo: HTTP_FILTER" WITH "context: SIDECAR_OUTBOUND"

apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
  name: wallarm-filter
spec:
  configPatches:
  - applyTo: HTTP_FILTER
    match:
      context: SIDECAR_INBOUND
      listener:
        filterChain:
          filter:
            name: envoy.filters.network.http_connection_manager
    patch:
      operation: INSERT_BEFORE
      value:
        name: envoy.filters.http.ext_proc
        typed_config:
          '@type': type.googleapis.com/envoy.extensions.filters.http.ext_proc.v3.ExternalProcessor
          failure_mode_allow: false
          grpc_service:
            envoy_grpc:
              cluster_name: wallarm_cluster
          processing_mode:
            request_body_mode: STREAMED
            response_body_mode: STREAMED
          request_attributes:
          - request.id
          - request.time
          - source.address
  - applyTo: CLUSTER
    match:
      context: SIDECAR_OUTBOUND
    patch:
      operation: ADD
      value:
        connect_timeout: 30s
        http2_protocol_options: {}
        load_assignment:
          cluster_name: wallarm_cluster
          endpoints:
          - lb_endpoints:
            - endpoint:
                address:
                  socket_address:
                    address: <WALLARM_NODE_FQDN>
                    port_value: <PORT>
        name: wallarm_cluster
        transport_socket:
          name: envoy.transport_sockets.tls
          typed_config:
            '@type': type.googleapis.com/envoy.extensions.transport_sockets.tls.v3.UpstreamTlsContext
            common_tls_context:
              validation_context:
                match_subject_alt_names:
                - exact: <WALLARM_NODE_FQDN>
                trusted_ca:
                  filename: /etc/ssl/certs/ca-certificates.crt
        type: STRICT_DNS

Excluding specific domains or routes¶

If you have a complex routing setup and experience duplicated or unwanted mirrored traffic, you can exclude selected routes from inspection.

This method uses ExtProcPerRoute configuration and is based on the route.name label in your VirtualService objects:

Make sure that each VirtualService has a spec.http[0].name field specified — this name will be referenced when configuring exclusions:

apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  name: httpbin-vs
  namespace: httpbin
spec:
  gateways:
  - <GATEWAY>
  hosts:
  - <HOST>
  http:
  - match:
    - uri:
        prefix: /
    name: <ROUTE_NAME> ## <---- ENSURE NAME IS DEFINED FOR ALL VS OBJECTS
    route:
    - destination:
        host: httpbin
        port:
          number: 80

Deploy a single EnvoyFilter in the istio-system namespace to mirror all ingress traffic and exclude selected routes based on their names.

In the following example, all traffic is mirrored except for httpbin2 and httpbin4, which are explicitly excluded:

apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
  name: wallarm-route
  namespace: istio-system
spec:
  workloadSelector:
    labels:
      istio: ingressgateway
  configPatches:

  # === 1. Apply the Wallarm ext_proc filter to all inbound traffic ===
  - applyTo: HTTP_FILTER
    match:
      context: GATEWAY
      listener:
        filterChain:
          filter:
            name: envoy.filters.network.http_connection_manager
    patch:
      operation: INSERT_BEFORE
      value:
        name: envoy.filters.http.ext_proc
        typed_config:
          '@type': type.googleapis.com/envoy.extensions.filters.http.ext_proc.v3.ExternalProcessor
          failure_mode_allow: false
          grpc_service:
            envoy_grpc:
              cluster_name: wallarm_cluster
          processing_mode:
            request_body_mode: STREAMED
            response_body_mode: STREAMED
          request_attributes:
          - request.id
          - request.time
          - source.address

  # === 2. Define the Wallarm Node cluster for traffic mirroring ===
  - applyTo: CLUSTER
    match:
      context: GATEWAY
    patch:
      operation: ADD
      value:
        name: wallarm_cluster
        connect_timeout: 30s
        type: STRICT_DNS
        load_assignment:
          cluster_name: wallarm_cluster
          endpoints:
          - lb_endpoints:
            - endpoint:
                address:
                  socket_address:
                    address: <WALLARM_NODE_FQDN>
                    port_value: <PORT>
        http2_protocol_options: {}
        transport_socket:
          name: envoy.transport_sockets.tls
          typed_config:
            '@type': type.googleapis.com/envoy.extensions.transport_sockets.tls.v3.UpstreamTlsContext
            common_tls_context:
              validation_context:
                match_subject_alt_names:
                - exact: <WALLARM_NODE_FQDN>
                trusted_ca:
                  filename: /etc/ssl/certs/ca-certificates.crt

  # === 3. Exclude specific routes from mirroring ===
  # Example: Exclude httpbin2
  - applyTo: HTTP_ROUTE
    match:
      context: GATEWAY
      routeConfiguration:
        vhost:
          name: httpbin2.example.com:443
          route:
            name: httpbin2-route
    patch:
      operation: MERGE
      value:
        typed_per_filter_config:
          envoy.filters.http.ext_proc:
            '@type': type.googleapis.com/envoy.extensions.filters.http.ext_proc.v3.ExtProcPerRoute
            disabled: true

  # Example: Exclude httpbin4
  - applyTo: HTTP_ROUTE
    match:
      context: GATEWAY
      routeConfiguration:
        vhost:
          name: httpbin4.example.com:443
          route:
            name: httpbin4-route
    patch:
      operation: MERGE
      value:
        typed_per_filter_config:
          envoy.filters.http.ext_proc:
            '@type': type.googleapis.com/envoy.extensions.filters.http.ext_proc.v3.ExtProcPerRoute
            disabled: true

Manual setup (standalone Envoy)¶

If you are running Envoy outside Istio, insert the filter and cluster directly in your envoy.yaml:

In your envoy.yaml → http_filters section, configure the external processing filter for sending requests and responses to the external Wallarm Node for analysis:

...

http_filters:
- name: ext_proc
  typed_config:
    "@type": type.googleapis.com/envoy.extensions.filters.http.ext_proc.v3.ExternalProcessor
    grpc_service:
      envoy_grpc:
        cluster_name: wallarm_cluster
    processing_mode:
      request_body_mode: STREAMED
      response_body_mode: STREAMED
    request_attributes: ["request.id", "request.time", "source.address"]

In your envoy.yaml → clusters section, configure the Wallarm cluster used to forward data to the Wallarm Node:

clusters:
- ...
- name: wallarm_cluster
  connect_timeout: 30s
  load_assignment:
    cluster_name: wallarm_cluster
    endpoints: # Wallarm Node endpoint
    - lb_endpoints:
      - endpoint:
          address:
            socket_address:
              address: <WALLARM_NODE_FQDN>
              port_value: 5080
  http2_protocol_options: {} # must be set for enabling http2
  transport_socket:
    name: envoy.transport_sockets.tls
    typed_config:
      "@type": type.googleapis.com/envoy.extensions.transport_sockets.tls.v3.UpstreamTlsContext
      common_tls_context:
        validation_context:
          trusted_ca:
            filename: /path/to/node-ca.pem

Upgrading the filter¶

To upgrade the filter:

Re-apply your EnvoyFilter if schema changes are introduced:

kubectl apply -f <UPDATED_ENVOYFILTER_FILE_NAME>.yaml
kubectl rollout restart deploy/istio-ingressgateway -n istio-system

Verify the new configuration:

istioctl pc listeners -n istio-system <INGRESS_POD> | grep ext_proc

Filter upgrades may require a Wallarm node upgrade, especially for major version updates. See the Native Node changelog for the self-hosted Node release notes. Regular node updates are recommended to avoid deprecation and simplify future upgrades.
